Air compressor is commonly used in water well drilling, rock drilling, mine drilling areas and so on. Air compressor is the main body to provide air source power for percussive water well drilling rig, provide certain air volume and pressure for DTH drilling rig. The model choice both depend on your drilling depth and hole diameter (open hole and end hole), once we make sure your details, we will design the suitable air compressor for you. Mainly three brands for your choice: America SULLAIR, LiUTECH -- Atlas Copco, China ZHIGAO, the pressure from 14bar, 15bar, 18bar,20bar,22bar,24bar,25bar,27bar to 30bar, skid mounted and wheeled mounted models. If it is easy to rent the air compressor in local, you can consider to rent one in local to start your business firstly, which can greatly save your cost.

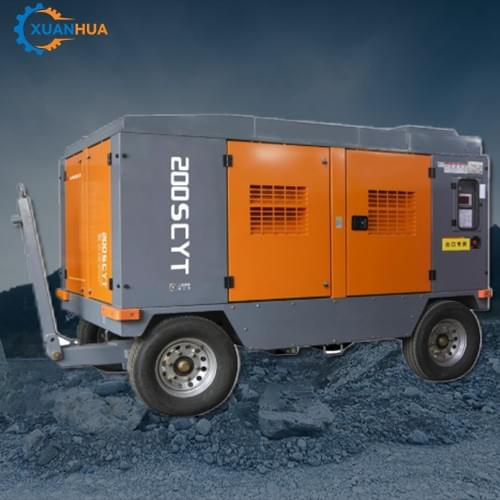

200SCYT-18-22
Air flow: 20-22 m³/min
Work pressure: 22-18 bar
Power: 191 kw Yuchai
Stage: Two
Weight: 3950 kg
Dimension: 3600*1910*2420 mm
265SCYT-18-22
Air flow: 24-26 m³/min
Work pressure: 22-18 bar
Power: 264 kw Cummins
Stage: Two
Weight: 4600 kg
Dimension: 4180*2080*2510 mm

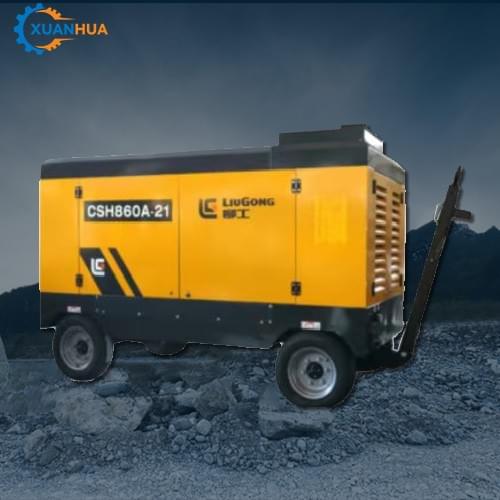

CSH860A-21
Volume flow: 24/38 m³/min
Work pressure: 21 bar
Lubricating oil capacity: 120L
Diesel engine Manufacturer: CUMMINS
Diesel engine Model: B7-T3
Power: 221 KW
Maximum operating speed: 2000/1300 rpm
Number of cylinders 6
Total displacement: 6.79 L
Fuel tank capacity: 340 L
Machine weight: 3 T
Exhaust port specifications X quantity:
G2x1&G3/4x1
Skid-mounted overall dimensions:
3500*1570*2150 mm
CSH1320A-35
Volume flow: 31-29/36.5-32 m³/min
Work pressure: 21-25/21-35 bar
Lubricating oil capacity: 120L
Diesel engine Manufacturer: YYUCHAI
Diesel engine Model: YCK16775-T300
Power: 412 KW
Maximum operating speed:
1600/1300 1830/1300 rpm
Number of cylinders 6
Total displacement: 16 L
Fuel tank capacity: 700 L
Machine weight: 5.6 T
Exhaust port specifications X quantity:
G2x1&G3/4x1
Skid-mounted overall dimensions:
4100*1800*2050 mm
MAIN FEATURES
