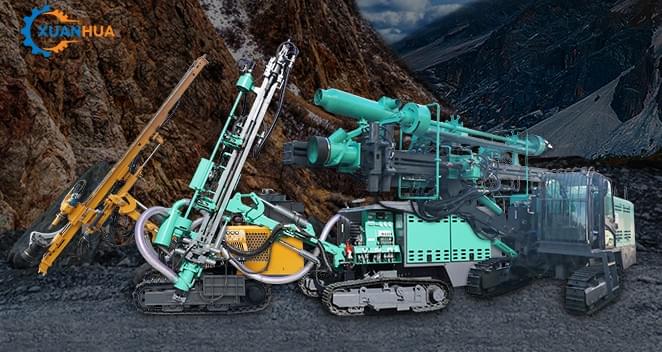

Down the hole drill rig for mining
The down the hole drill rig for open use is an improved device in compliance with national.the drill rig meets national standards for emissions and environment.The lramming motor of plunger piston and four-wheel drive improve the working pressure and climting capacily. The expanded pitch and lifting-arm hydraulic,cylinder enable it to meet the requirements of limiting position use Meanwhile,the hydraulic system is improved,thereby proving increased system flow and rotary speed.The hydrautlic cylinder has been optimized, thus making it more reliable. The guide rail is installed in an inclined way, making operations and observations easier. The thickened profle is used for the housing, and the additional ring makes handling and lifting convenient.
Contacts Us
E-mail: sales01@xuanhuadrillingrig.com
Phone: +86 13007535833
WhatsApp: +86 13007535833
WeChat: +86 13007535833
ADD: Unit 1, Building 1, West 5th Street, Hanghai East Road, Zhengzhou Area, Henan China

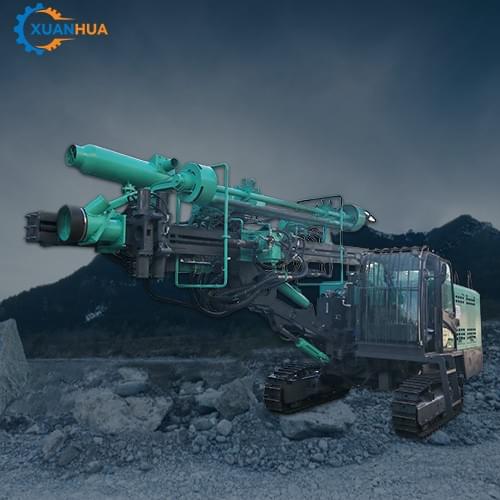

XH431H
Drilling diameter: 90-127 mm
Max. hole depth: 21 m
Drilling pipes: 60*3000 mm
Rated power/ rotation speed:
162kw/2200 rpm
Fuel tank capacity: 250 L
Air flow at normal working pressure:
13 m³/min
Max. air pressure: 19 bar
Main hydraulic pump max. pressure: 25 Mpa
Max. torque: 156000 N.M
Rotation speed: 135 rpm
Feed mode: hydraulic cylinder+chain
Travel stroke: 3700 mm
Total length of derrick: 5500 mm
Max. pull force: 31 kn
Max. feed force: 7.5 kn
Max. feed speed: 0.5 m/s
Filter area: 20 m²
Number of filter elements: 20 pcs
Max. walking speed: 3.2 km/h
Max. climbable angle: 25 °

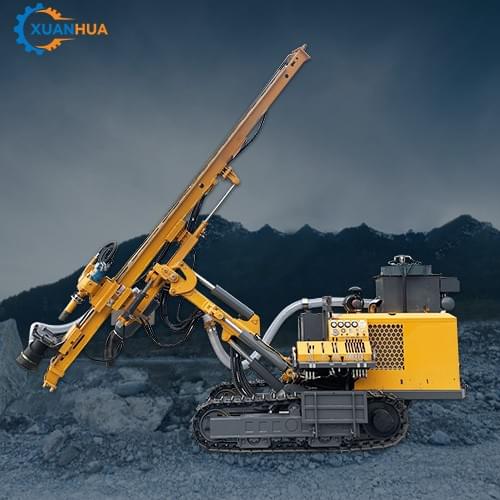

XHM452B
Drilling diameter: 90-200mm
Max. hole depth: 21 m
Drilling pipes: 76*3000 mm
Rated power/ rotation speed:
194kw/2200 rpm
Fuel tank capacity: 250 L
Air flow at normal working pressure:
15 m³/min
Max. air pressure: 18 bar
Main hydraulic pump max. pressure: 25 Mpa
Max. torque: 6000 N.M
Rotation speed: 0-135 rpm
Feed mode: hydraulic cylinder+chain
Travel stroke: 3700 mm
Total length of derrick: 5500 mm
Max. pull force: 31 kn
Max. feed force: 7.5 kn
Max. feed speed: 0.5 m/s
Filter area: 20 m²
Number of filter elements: 20 pcs
Max. walking speed: 3.2 km/h
Max. climbable angle: 25 °

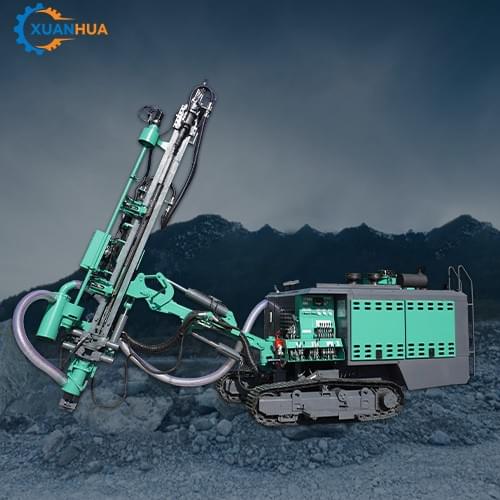

XH580
Weight:7.2 t
Working pressure:1.7-3.3Mpa
Drill pipe length:3m
Swing speed:35-75rpm
Walking speed:2.5km/h
Max Gradeability:30°
Diesel engine power:75KW
Recommended caliber:90-160mm
Advance length:3.6m
Overall dimension:6400*2350*2600mm
Maximum torque:4500-6000N.m
Chassis clearance from ground:33-60cm
