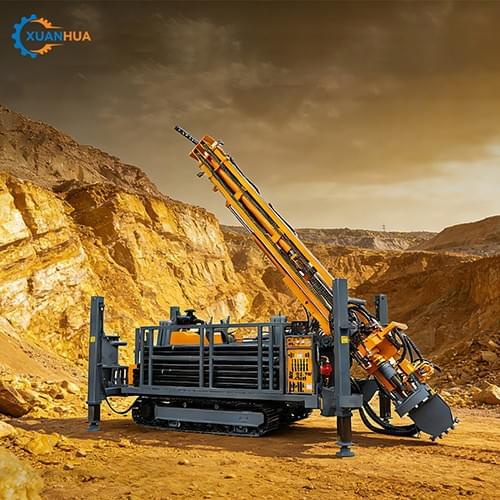

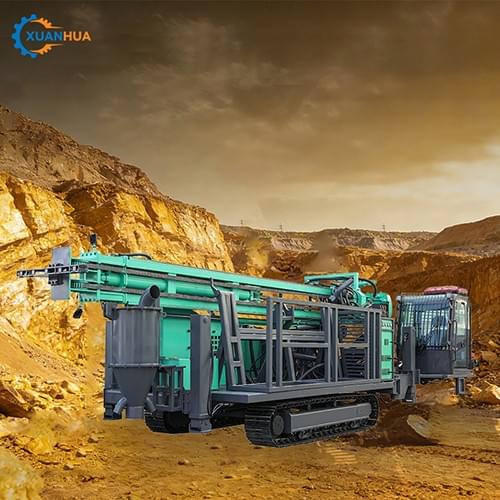

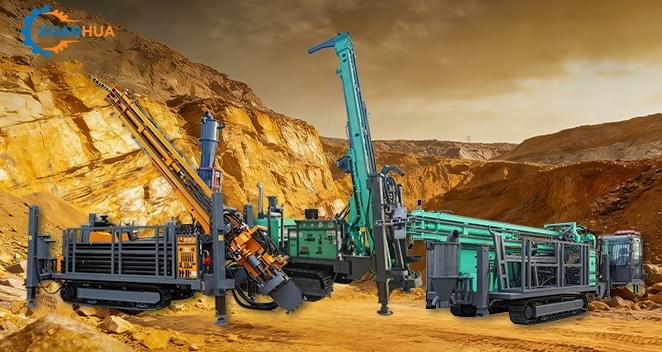

Reverse circulation drilling rig is a new, efficient, environmentally friendly, multifunctional crawler drilling rig. It uses double-wall drill pipes. After the inner tube is discharged, the discharged slag is collected by a cyclone collector. It can be used for sampling and analysis in geological exploration departments.This drilling rig can use compressed air reverse circulation down-the-hole drilling in various strata. The drilling rig's drilling rig lifting, drilling rig compensation, drilling rod loading and unloading, rotation and feeding, outriggers, winches, walking and other actions are all realized by the hydraulic system, which greatly reduces the labor intensity and improves the construction efficiency and engineering quality.
XHRC500
Drilling depth: 500 m
Drilling diameter: 140-400 m
Drill rod diameter: 76/89/102/114 m
Drill rod length: 1.5/2/3/6m
Rotational torque: 8000-12000 N.m
Rotational speed: 40-160 rpm
Feeding stroke: 3.3/6.6 m
Lifting force: 300 kN
Thrust force: 150 kN
Fast lifting speed: 20m/min
Fast feeding speed: 40m/min
Engine brand: Cummins
ated power/speed: 132/2400 kW/rpm
Lifting force: 20kN
Working air pressure: 1.7-3.5 MPA
Air consumption: 17-42 m³/min
Walking speed: 2.5 km/h
Climbing ability: 30 °
XHRC500
Drilling depth: 500 m
Drilling diameter: 140-400 m
Drill rod diameter: 76/89/102/114 m
Drill rod length: 1.5/2/3/6m
Rotational torque: 8000-12000 N.m
Rotational speed: 40-160 rpm
Feeding stroke: 3.3/6.6 m
Lifting force: 300 kN
Thrust force: 150 kN
Fast lifting speed: 20m/min
Fast feeding speed: 40m/min
Engine brand: Cummins
ated power/speed: 132/2400 kW/rpm
Lifting force: 20kN
Working air pressure: 1.7-3.5 MPA
Air consumption: 17-42 m³/min
Walking speed: 2.5 km/h
Climbing ability: 30 °
XHRC500-D
Drilling depth: 500 m
Drilling diameter: 140-400 m
Drill rod diameter: 76/89/102/114 m
Drill rod length: 1.5/2/3/6m
Rotational torque: 8000-12000 N.m
Rotational speed: 40-160 rpm
Feeding stroke: 3.3/6.6 m
Lifting force: 300 kN
Thrust force: 150 kN
Fast lifting speed: 20m/min
Fast feeding speed: 40m/min
Engine brand: Cummins
ated power/speed: 132/2400 kW/rpm
Lifting force: 20kN
Working air pressure: 1.7-3.5 MPA
Air consumption: 17-42 m³/min
Walking speed: 2.5 km/h
Climbing ability: 30 °

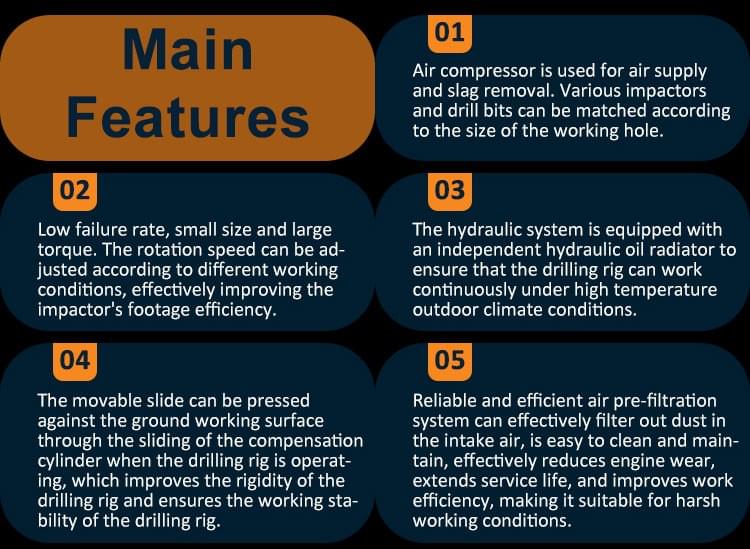

MAIN FEATURES
