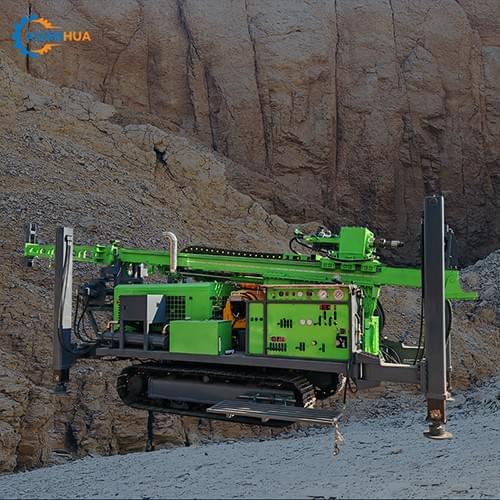

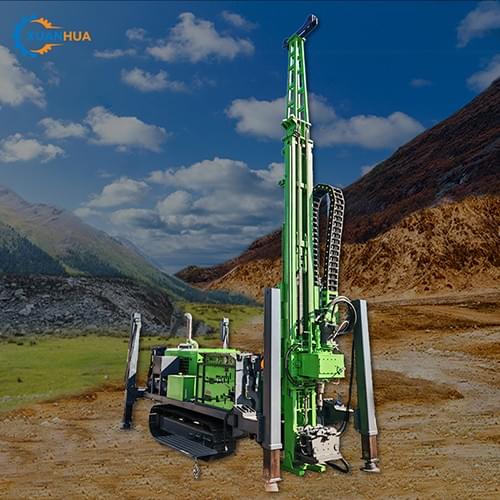

The YCD series fully hydraulic core drilling rig is a new type of drilling rig developed by our company based on advanced technologies from similar domestic and international drilling rigs. It is primarily suitable for drilling solid mineral deposits, but can also be used for engineering geology, shallow oil, natural gas, and groundwater drilling, as well as for tunnel ventilation, drainage, and dam grouting. The rig utilizes a fully hydraulic drive, with the power head's rotation driven by an axial piston pump and a bevel-axis piston motor, featuring two mechanical speeds and stepless speed regulation. The power head utilizes a cylinder-chain double-speed feed mechanism for smooth and reliable movement. It also features a lateral translation mechanism for the power head, and the mast, which is raised and lowered by a cylinder and slides as a whole, can drill holes within a 45-90° range. The hydraulic system utilizes load-sensing control, resulting in high efficiency and high torque.

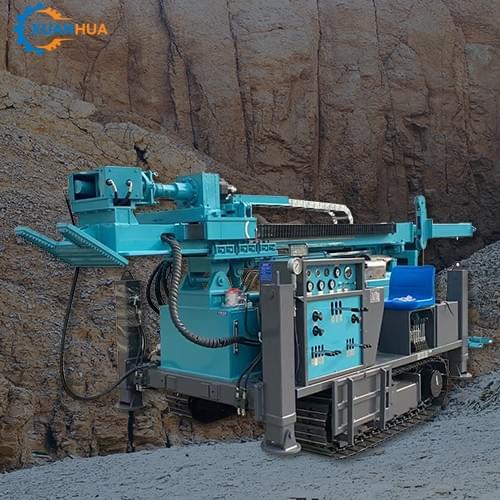

XH600
Drilling Capability:
BTW-650 m
NTW-600 m
HTW-30 m
Hydraulic Cooking Method：Water Cooling
Engine Mode: Yuchai91kw
Rated Power: 91 kw
Rated Speed: 2200 rpm
Maximum Torque: 1600 N.m
Maximum Speed: 1400 rpm
Feed Stroke: 2(Optional)
Lifting Force: 16 T
Thrust Force: 8 T
Rope capacity: 800 m
Lifting force: 15 KN
Lifting speed: 110 m/min
Wire rope diameter: 6 mm
Total height: 7 m
Drilling angle: 45-90 °
Compensation stroke: 900 mm
Mud pump: BW90
Machine weight: 5.7T

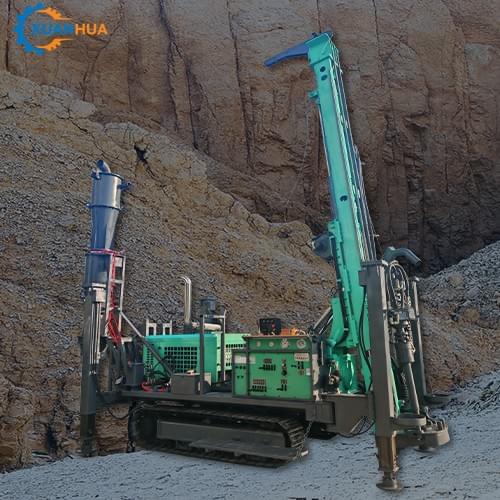

YCD-600Q
Drilling Capability:
BTW-650 m
NTW-600 m
HTW-400 m
Main Pump: 31.5MPa-200 L/min x 2
Auxiliary Pump: 20MPa-80 l/min x2
Hydraulic Cooking Method：Water-cooled
Engine Mode: Yunnei diesel engine 4 cylinder turbocharged
Rated Power: 55kw x 2 units
Rated Speed: 2400 rpm
Maximum Torque: 1200 N.m
Maximum Speed: 0-1100 rpm
Feed Stroke: 1.8 m
Lifting Force: 100 kn
Thrust Force: 75 kn
Rope capacity: 800 m
Lifting force: 15 KN
Lifting speed: 110 m/min
Wire rope diameter: 5 mm
Drilling angle: 45-90 °

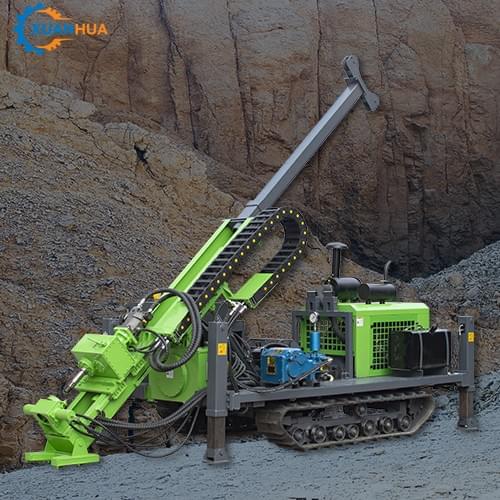

YCD-600
Drilling Capability:
BTW-650 m
NTW-600 m
HTW-300 m
Main Pump: 95ml/r.32MPa
Auxiliary Pump: 80ml/r.25MPa
Hydraulic Cooking Method：air-cooling
Engine Mode: Yuchai Power 4-cylinder 92kW
Rated Power: 92 kw
Rated Speed: 2200 rpm
Maximum Torque: 1400 N.m
Maximum Speed: 1400 rpm
Feed Stroke: 1.8 m
Lifting Force: 240 kn
Thrust Force: 120 kn
Rope capacity: 800 m
Lifting force: 15 KN
Lifting speed: 110 m/min
Wire rope diameter: 6 mm
Drilling angle: 45-90 °

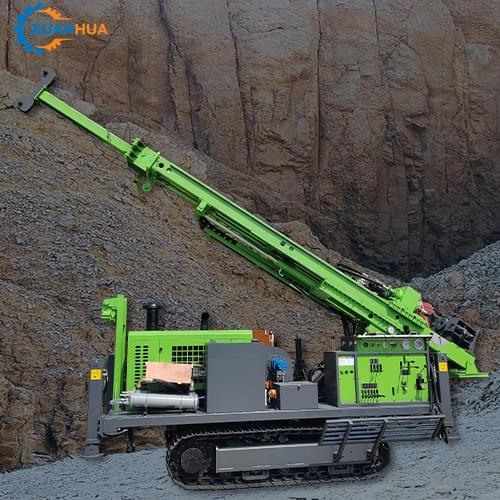

YCD-600SPT
Drilling Capability:
BTW-650 m
NTW-600 m
HTW-300 m
Main Pump: 95ml/r.32MPa
Auxiliary Pump: 80ml/r.25MPa
Hydraulic Cooking Method：air-cooling
Engine Mode: Yuchai Power 4-cylinder 92kW
Rated Power: 92 kw
Rated Speed: 2200 rpm
Maximum Torque: 1400 N.m
Maximum Speed: 1400 rpm
Feed Stroke: 1.8 m
Lifting Force: 240 kn
Thrust Force: 120 kn
Rope capacity: 800 m
Lifting force: 15 KN
Lifting speed: 110 m/min
Wire rope diameter: 6 mm
Drilling angle: 45-90 °

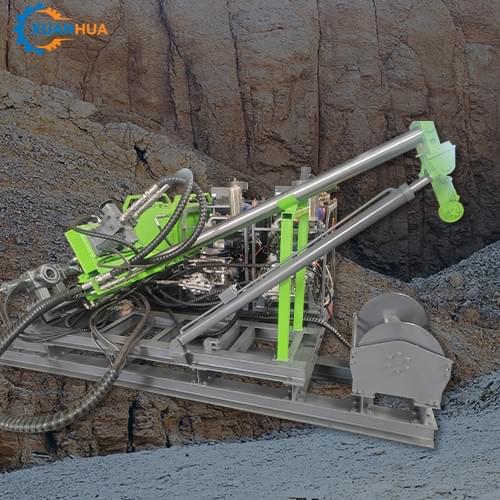

YCD-800
Drilling Capability:
BTW-1200 m
NTW-1000 m
HTW-800 m
PQ-600 m
Main Pump: 95ml/r.32MPa
Auxiliary Pump: 80ml/r.25MPa
Hydraulic Cooking Method：2-stage air-cooled plus 1-stage water-cooled
Engine Mode: Yuchai 6-cylinder 92kw
Rated Power: 92 kw
Rated Speed: 2200 rpm
Maximum Torque: 1800 N.m
Maximum Speed: 1400 rpm
Feed Stroke: 1.8 m
Lifting Force: 300 kn
Thrust Force: 150 kn
Rope capacity: 1000 m
Lifting force: 20 KN
Lifting speed: 110 m/min
Wire rope diameter: 6 mm
Drilling angle: 0-90 °

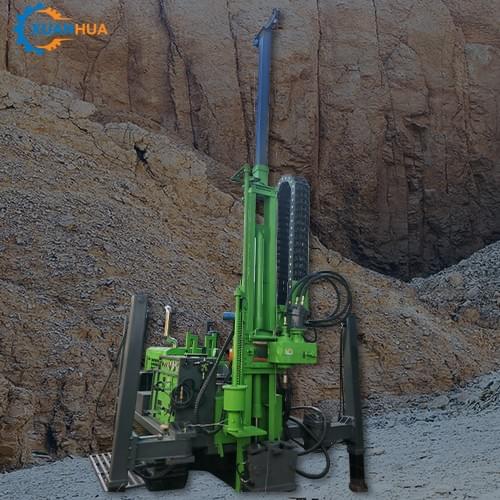

YCD-1000
Drilling Capability:
BTW-1400 m
NTW-1200 m
HTW-1000 m
PQ-800 m
Main Pump: 115ml/r.32MPa
Auxiliary Pump: 80ml/r.25MPa
Hydraulic Cooking Method：2-stage air-cooled plus 1-stage water-cooled
Engine Mode: Weichai 6-cylinder 129kw
Rated Power: 129 kw
Rated Speed: 2200 rpm
Maximum Torque: 1800 N.m
Maximum Speed: 1400 rpm
Feed Stroke: 2.5 m
Lifting Force: 360 kn
Thrust Force: 180 kn
Rope capacity: 1200 m
Lifting force: 24 KN
Lifting speed: 110 m/min
Wire rope diameter: 6 mm
Drilling angle: 0-90 °
YCD-1600
Drilling Capability:
BTW-1800 m
NTW-1600 m
HTW-1400 m
Drilling angle:45-90 °
Mast slip stroke:1200 mm
Pawer head lifting force:460 KN
Power head propulsion:230 KN
Power head rotation speed:0-1400 rpm
Max. rotation torque of power head:1800 N.m
Power head propulsion stroke:1200/3500 mm
Hydraulic winch rope capacity:1600 m
Hydraulic winch lifting force:30 KN
Hydraulic winch lifting speed:110 m/min
Maximum climbing angle:25 °
Weight:10000 kg
Dimension:5900*2650*8100 mm
YCD-2000
Drilling Capability:
BTW-2200 m
NTW-2000 m
HTW-1800 m
Drilling angle:45-90 °
Mast slip stroke:1200 mm
Pawer head lifting force:600 KN
Power head propulsion:300 KN
Power head rotation speed:0-1600 rpm
Max. rotation torque of power head:5000 N.m
Power head propulsion stroke:1200/3500 mm
Hydraulic winch rope capacity:2000 m
Hydraulic winch lifting force:45 KN
Hydraulic winch lifting speed:110 m/min
Maximum climbing angle:25 °
Weight:12000 kg
Dimension:6100*2200*2500 mm

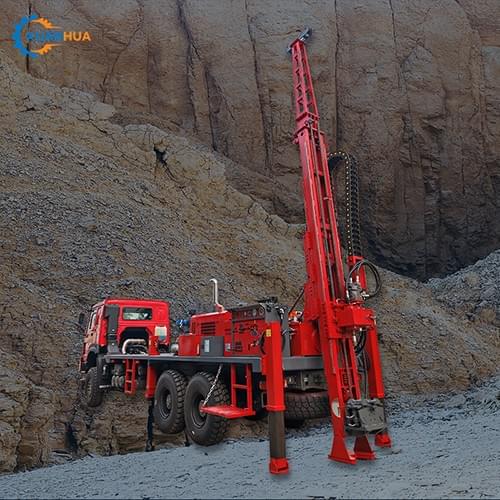

YCT-1000B
Drilling Capability:
BTW-1400 m
NTW-1200 m
HTW-1000 m
Drilling angle:0-90 °
Mast slip stroke:1200 mm
Pawer head lifting force:360 KN
Power head propulsion:180 KN
Power head rotation speed:0-1400 rpm
Max. rotation torque of power head:2600 N.m
Power head propulsion stroke:3500 mm
Hydraulic winch rope capacity:1200 m
Hydraulic winch lifting force:24 KN
Hydraulic winch lifting speed:110 m/min
Maximum climbing angle:30 °
Weight:14 t
Dimension:7000*3000*3000 mm

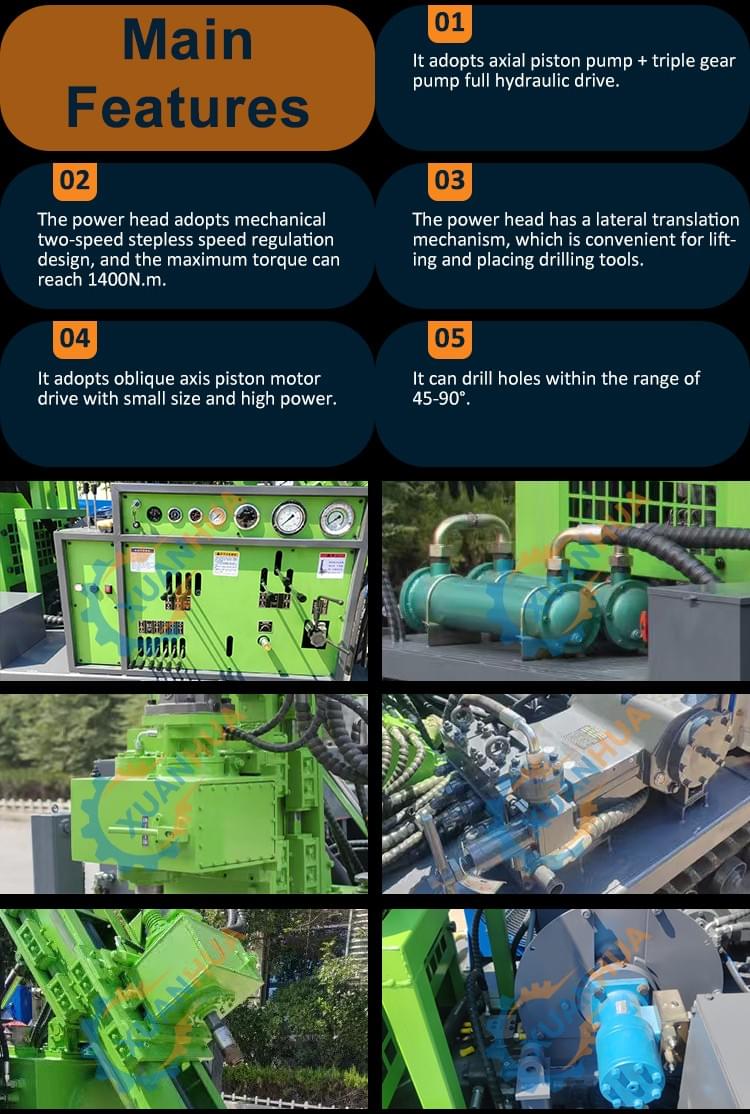

MAIN FEATURES

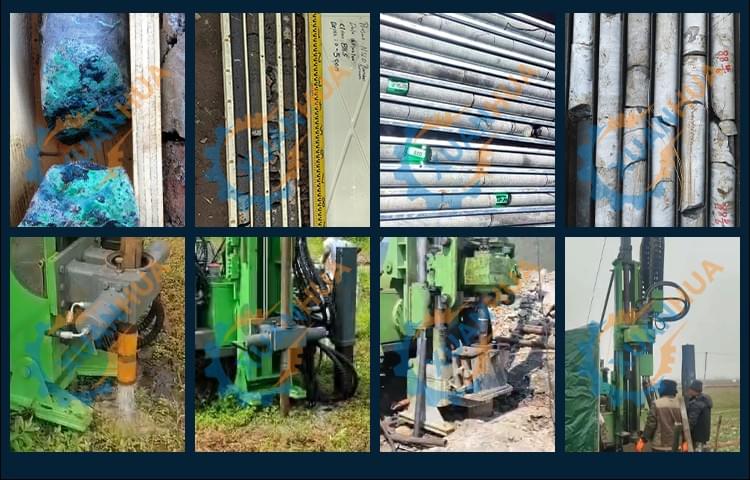

CUSTOMERS CASES
