- Percussion Drilling Machines
Air drilling rig can be used with air compressor, good at drilling hard rock, with root canal, can also be used for soft soil, high efficiency, 1-2 days can be drilled a well. Belong to the high efficiency, high rate of return drilling rig, is the first choice of professional drilling company, construction company, investment company.
Contacts Us
E-mail: sales01@xuanhuadrillingrig.com
Phone: +86 13007535833
WhatsApp: +86 13007535833
WeChat: +86 13007535833
ADD: Unit 1, Building 1, West 5th Street, Hanghai East Road, Zhengzhou Area, Henan China
For the air drilling rig, it also called DTH drilling rig or percussion drilling rig, working with air compressor, which good performance in hard rock layer drilling, mainly used in Zimbabwe, Malawi, Chile, Ecuador etc countries, where mostly is the stone or rock layer. The model from YCQ-130T to YCQ-600, it can drill from 50-600 m in depth, our engineer will match the suitable model air compressor depends on your requirements on the drilling depth and hole diameter (open hole and end hole), so that we promise our machine can meet your drilling depth and diameter. Because it with high drilling efficiency, the professional drilling service company, contracted company, construction company and investment company prefer to use it, which can finish one 200m well within one day.

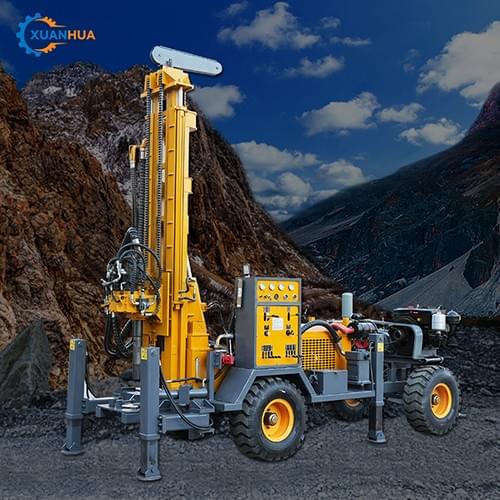

YCQ-130T
Weight: 3 t
Dimensions: 3850*1560*2050 mm
Borehole Diameter: 100-219 mm
Drilling Depth: 130 m
Advanced Length Once a Time: 2300 mm
Walking Speed: 3.0 km/h
Max. Climbing Angles: 30 °
Power: Changchai 23HP
Working Pressure: 1.45-2.5 Mpa
Air Consumption: 15-29 m³/min
Drill Pipe Diameter: Ø 76/Ø 89 mm
Drill Pipe Length: 1.5/2.0 m
Rig Lifting Force: 6 T
Swing Speed: 40-46 rpm
Swing Torque: 2200-3000 N.m
Rapid rise speed:15m/min
Fast feeding speed:23m/min
Width of loading:1.56m
The penetration effciency:10-35m/h

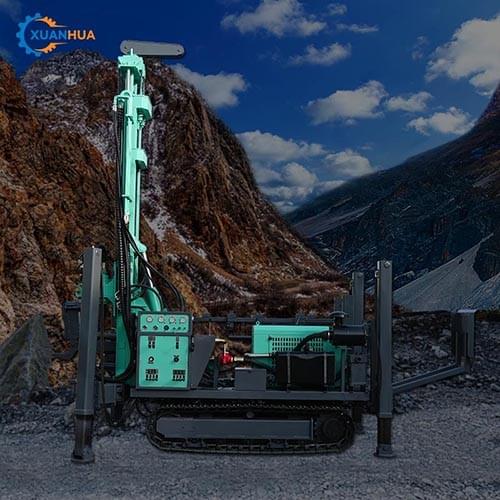

YCQ-150
Weight: 4.5 t
Dimensions: 3950*1630*2250 mm
Borehole Diameter: 140-254 mm
Drilling Depth: 180 m
Advanced Length Once a Time: 3300 mm
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power: 55 kw Quanchai
The penetration effciency:10-35m/h
Air Consumption: 17-31 m³/min
Drill Pipe Diameter: Ø 76/Ø 89 mm
Drill Pipe Length: 1.5/2.0/3.0 m
Rig Lifting Force:12 T
Swing Speed: 45-70 rpm
Swing Torque: 3200-4600 N.m
High leg stroke:1.4m
Rapid rise speed:20m/min
Fast feeding speed:40m/min
Width of loading:2.4m

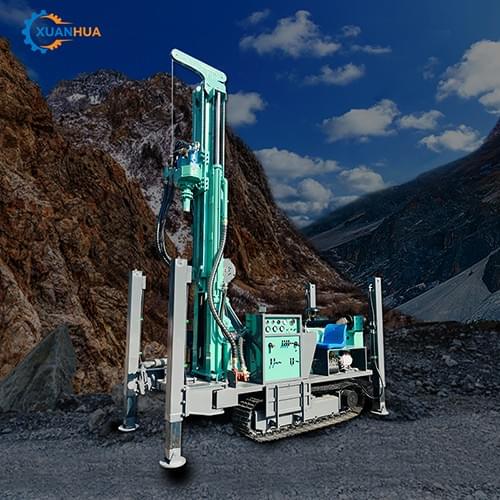

YCQ-180
Weight: 4.5 t
Dimensions: 3950*1630*2250 mm
Borehole Diameter: 140-254 mm
Drilling Depth: 180 m
Advanced Length Once a Time: 3300 mm
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power: 55 kw Quanchai
The penetration effciency:10-35m/h
Air Consumption: 17-31 m³/min
Drill Pipe Diameter: Ø 76/Ø 89 mm
Drill Pipe Length: 1.5/2.0/3.0 m
Rig Lifting Force:12 T
Swing Speed: 45-70 rpm
Swing Torque: 3200-4600 N.m
High leg stroke:1.4m
Rapid rise speed:20m/min
Fast feeding speed:40m/min
Width of loading:2.4m

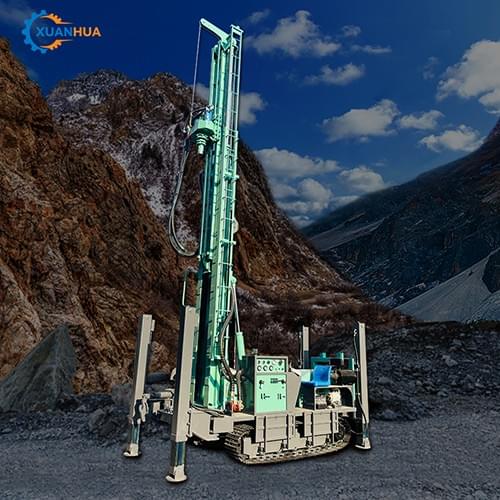

YCQ-180mini
Weight: 3 t
Dimensions: 2300*1200*1900 mm
Borehole Diameter: 130-254 mm
Drilling Depth: 180 m
Advanced Length Once a Time: 2.4m
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power: 77.3 kw Yuchai
Working Pressure: 1.7-2.5 Mpa
Air Consumption: 17-31 m³/min
Drill Pipe Diameter: Ø 76/Ø 89 mm
Drill Pipe Length: 1.5/2.0 m
Rig Lifting Force: 15 T
Swing Speed: 45-65 rpm
Swing Torque: 4000-4600 N.m
YCQ-180T
Drilling Depth: 180 m
Borehole Diameter: 130-254 mm
Advanced Length Once a Time: 3.6m
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power: 58 kw Yuchai
Working Pressure: 1.7-2.5 Mpa
Air Consumption: 17-31 m³/min
Drill Pipe Diameter: Ø 76/Ø 89 mm
Drill Pipe Length: 1.5/2.0/3.0 m
Rig Lifting Force: 15 T
Swing Speed: 45-65 rpm
Swing Torque: 4000-4600 N.m
Weight: 5.5 t
Dimensions: 3800*1700*2250 mm
YCQ-180
Weight: 4.5 t
Dimensions: 3800*1700*2250 mm
Borehole Diameter: 130-254 mm
Drilling Depth: 180 m
Advanced Length Once a Time: 3.6m
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power: 58 kw Yuchai
Working Pressure: 1.7-2.5 Mpa
Air Consumption: 17-31 m³/min
Drill Pipe Diameter: Ø 76/Ø 89 mm
Drill Pipe Length: 1.5/2.0/3.0 m
Rig Lifting Force: 15 T
Swing Speed: 45-65 rpm
Swing Torque: 4000-4600 N.m
YCQ-200
Weight: 4.7 t
Dimensions: 3950*1750*2250 mm
Borehole Diameter: 140-254mm
Drilling Depth: 200 m
Advanced Length Once a Time: 3300 mm
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power: 58 kw Yuchai
Working Pressure: 1.7-2.5 Mpa
Air Consumption: 17-31 m³/min
Drill Pipe Diameter: Ø 76/Ø 89 mm
Drill Pipe Length: 1.5/2.0/3.0 m
Rig Lifting Force: 13 T
Swing Speed： 45-70 rpm
Swing Torque: 3400-4700 N.m
High leg stroke:1.4m
Rapid rise speed:30m/min
Fast feeding speed:60m/min
Width of loading:2.6m
Hoisting force of winch:1.5T
Penetration effciency:10-35m/h
YCQ-200S
Weight: 4.7 t
Dimensions: 4350*1600*2450 mm
Borehole Diameter: 140-254 mm
Drilling Depth: 200 m
Advanced Length Once a Time: 3300 mm
Walking Speed: 20-40 km/h
Max. Climbing Angles: 30 °
Power: 58KW YUCHAI
Working Pressure: 1.7-2.5Mpa
Air Consumption: 17-31 m³/min
Drill Pipe Diameter: Ø 76/Ø 89 mm
Drill Pipe Length: 1.5/2.0/3.0 m
Rig Lifting Force: 13 T
Swing Speed: 45-65 rpm
Swing Torque: 4500-4700 N.m
The penetration effciency:10-35m/h
Rapid rise speed:20m/min
Fast feeding speed:40m/min
YCQ-200T
Weight: 4 t
Borehole Diameter: 140-254 mm
Drilling Depth: 200 m
Advanced Length Once a Time: 2.3m
Working Pressure: 1.7-2.5 Mpa
Air Consumption: 17-30 m³/min
Drill Pipe Diameter: Ø 76/Ø 89 mm
Drill Pipe Length: 1.5m
Rig Lifting Force: 12 T
Swing Speed: 40-65 rpm
Swing Torque: 4500-5000 N.m
YCQ-260
Weight:5.7 t
Dimensions:3900*1750*2250mm
Borehole Diameter: 140-305 mm
Drilling Depth: 260 m
Advanced Length Once a Time: 3.3m
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power: 76 kw Quanchai
Working air Pressure: 1.7-2.5 Mpa
Air Consumption: 17-31 m³/min
Drill Pipe Diameter: Ø 76/Ø 89 mm
Drill Pipe Length: 1.5/2.0/3.0 m
Rig Lifting Force: 15T
Swing Speed： 45-70 rpm
Swing Torque: 4000-5300 N.m
Pnetration efficiency: 10-35 m/h
High leg stroke: 1.4m
Rapid rise speed:24m/min
Fast feeding speed:40m/min
Width of loading:2.73m
Hoisting force of winch:1.5T
YCQ-260T
Weight: 6.5 t
Dimensions: 4000*1850*2300 mm
Borehole Diameter: 140-305 mm
Drilling Depth: 260 m
Advanced Length Once a Time: 3.3m
Power: 76 kw Quanchai
Working Pressure: 1.7-3.0 Mpa
Air Consumption: 17-31 m³/min
Drill Pipe Diameter: Ø 76/Ø 89 mm
Drill Pipe Length: 1.5/2.0/3.0 m
Rig Lifting Force: 15T
Swing Speed： 45-70 rpm
Swing Torque: 4000-5300 N.m
Pnetration efficiency: 10-35 m/h
High leg stroke: 1.4m
YCQ-280
Drilling Depth: 280 m
Borehole Diameter: 140-305 mm
Advanced Length Once a Time: 6.6 m
Power: 75 kw
Working Pressure: 1.7-3.0 Mpa
Air Consumption: 17-31 m³/min
Drill Pipe Diameter: Ø 76/Ø 89 mm
Drill Pipe Length: 1.5/2.0/3.0 m
Rig Lifting Force: 15T
Swing Torque: 4500-6000 N.m
Weight: 7.6 t
Dimensions: 5900*1850*2360 mm
YCQ-300
Weight: 6.8t
Dimensions: 4100*2000*2260 mm
Borehole Diameter: 140-325 mm
Drilling Depth: 300 m
Advanced Length Once a Time: 3400 mm
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power: 85KW YUCHAI
Working Pressure: 1.7-3.0 Mpa
Air Consumption: 17-36 m³/min
Drill Pipe Diameter: Ø 76/Ø 89
Drill Pipe Length: 1.5/2.0/3.0 m
Rig Lifting Force: 18 T
Swing Speed： 40-70 rpm
Swing Torque: 5700-7500 N.m
Pnetration efficiency: 15-35 m/h
High leg stroke: 1.4m
Rapid rise speed:22m/min
Fast feeding speed:40m/min
Width of loading:2.6m
Hoisting force of winch:2T
YCQ-350
Weight: 8.6t
Dimensions: 6000*2000*2550 mm
Borehole Diameter: 140-325 mm
Drilling Depth: 350 m
Advanced Length Once a Time: 6600 mm
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power: 91 kw YUCHAI
Working Pressure: 1.7-3.4 Mpa
Air Consumption: 17-36 m³/min
Drill Pipe Diameter: Ø 89/Ø102
Drill Pipe Length: 1.5/2.0/3.0/6.0 m
Rig Lifting Force: 22T
Swing Speed：66-135 rpm
Swing Torque: 6200-8500 N.m
Pnetration efficiency: 15-35 m/h
High leg stroke: 1.4m
Rapid rise speed:18m/min
Fast feeding speed:33m/min
Width of loading:2.7m
Hoisting force of winch:2T
YCQ-450
Weight: 9.2 t
Dimensions: 6150*2200*2600 mm
Borehole Diameter: 140-350 mm
Drilling Depth: 450 m
Advanced Length Once a Time: 6600 mm
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power: 110 kw YUCHAI
Working Pressure: 1.7-3.5 Mpa
Air Consumption: 17-36 m³/min
Drill Pipe Diameter: Ø 89/Ø102 mm
Drill Pipe Length: 1.5/2.0/3.0/6.0 m
Rig Lifting Force: 25 T
Swing Speed: 30-135 rpm
Swing Torque: 7000-9500 N.m
High leg stroke: 1.6m
Rapid rise speed:20m/min
Fast feeding speed:40m/min
Width of loading:2.8m
Hoisting force of winch:2T
Penetration effciency:15-35m/h
YCQ-500
Weight: 9.5 t
Dimensions: 6150*2200*2600mm
Borehole Diameter: 140-350 mm
Drilling Depth: 500 m
Advanced Length Once a Time: 6600 mm
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power: Cummins 118KW YUCHAI 6 cylinders
Working Pressure: 1.7-3.5 Mpa
Air Consumption: 17-42m³/min
Drill Pipe Diameter: Ø 102/Ø 108/Ø 114 mm
Drill Pipe Length: 1.5/2.0/3.0/6.0 m
Rig Lifting Force: 26 T
Swing Speed: 45-130rpm
Swing Torque: 7500-10000 N.m
High leg stroke: 1.6m
Rapid rise speed:20m/min
Fast feeding speed:40m/min
Width of loading:2.85m
Hoisting force of winch:2T
Penetration effciency:15-35m/h
YCQ-600
Weight: 11.5 t
Dimensions: 6300*2200*2650 mm
Borehole Diameter: 140-350 mm
Drilling Depth: 600 m
Advanced Length Once a Time: 6600 mm
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power:113KW Cummins 6 cylinders
Working Pressure: 1.7-3.5 Mpa
Air Consumption: 17-42m³/min
Drill Pipe Diameter: Ø 102/Ø 108/Ø 114 mm
Drill Pipe Length: 1.5/2.0/3.0/6.0 m
Rig Lifting Force: 28 T
Swing Speed: 45-130 rpm
Swing Torque: 8500-11000 N.m
High leg stroke: 1.7m
Rapid rise speed:20m/min
Fast feeding speed:40m/min
Width of loading:2.85m
Hoisting force of winch:2T
Penetration effciency:15-35m/h
YCQ-700
Weight: 12 t
Dimensions: 6200*2200*2950 mm
Borehole Diameter: 140-350 mm
Drilling Depth: 700 m
Advanced Length Once a Time: 6600 mm
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power: 132KW Cummins 6 cylinders
Working Pressure: 1.7-3.5 Mpa
Air Consumption: 17-42m³/min
Drill Pipe Diameter: Ø 102/Ø 108/Ø 114 mm
Drill Pipe Length: 1.5/2.0/3.0/6.0 m
Rig Lifting Force: 28 T
Swing Speed: 45-140 rpm
Swing Torque: 8500-11000 N.m
High leg stroke: 1.7m
Rapid rise speed:20m/min
Fast feeding speed:40m/min
Width of loading:2.95m
Hoisting force of winch:2T
Penetration effciency:15-35m/h
YCQ-800
Weight: 13 t
Dimensions: 6300*2300*2950 mm
Borehole Diameter: 140-400 mm
Drilling Depth: 800 m
Advanced Length Once a Time: 6600 mm
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power: 153KW Cummins 6 cylinders
Working Pressure: 1.7-3.5 Mpa
Air Consumption: 17-42m³/min
Drill Pipe Diameter: Ø 102/Ø 108/Ø 114 mm
Drill Pipe Length: 1.5/2.0/3.0/6.0 m
Rig Lifting Force: 30 T
Swing Speed: 45-140 rpm
Swing Torque: 8850-13150 N.m
High leg stroke: 1.7m
Rapid rise speed:20m/min
Fast feeding speed:40m/min
Width of loading:2.95m
Hoisting force of winch:2T
Penetration effciency:15-35m/h
YCQ-1000
Weight: 13 t
Dimensions: 6300*2300*2950 mm
Borehole Diameter: 140-400 mm
Drilling Depth: 1000 m
Advanced Length Once a Time: 6600 mm
Walking Speed: 2.5 km/h
Max. Climbing Angles: 30 °
Power: 194KW Cummins 6 cylinders
Working Pressure: 1.7-3.5 Mpa
Air Consumption: 17-42m³/min
Drill Pipe Dia.: Ø 102/Ø 108/Ø 114/Ø 117 mm
Drill Pipe Length: 1.5/2.0/3.0/6.0 m
Rig Lifting Force: 36 T
Swing Speed: 45-140 rpm
Swing Torque:9000-14000 N.m
High leg stroke: 1.7m
Rapid rise speed:20m/min
Fast feeding speed:40m/min
Width of loading:2.95m
Hoisting force of winch:2T
Penetration effciency:15-35m/h
MAIN FEATURES
CUSTOMERS CASES

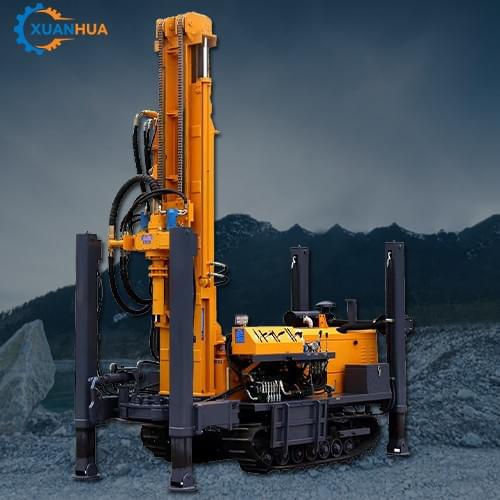

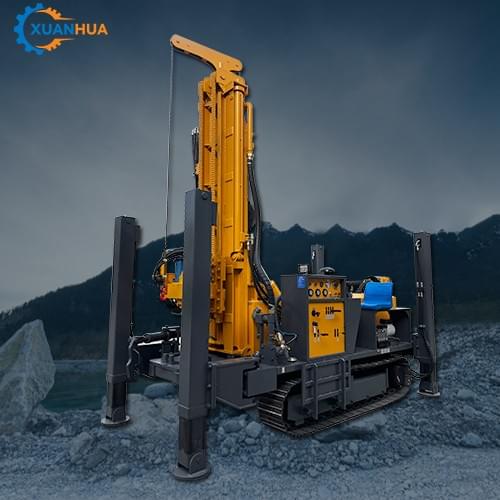

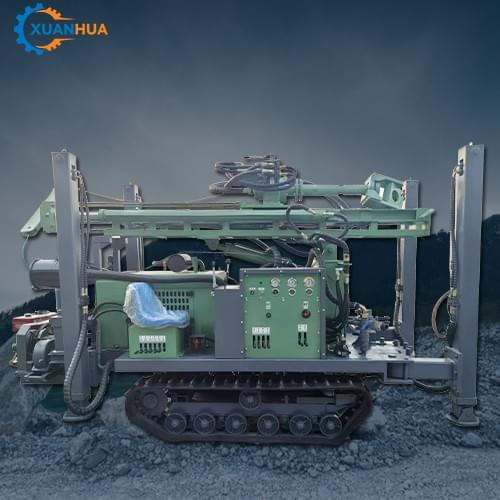

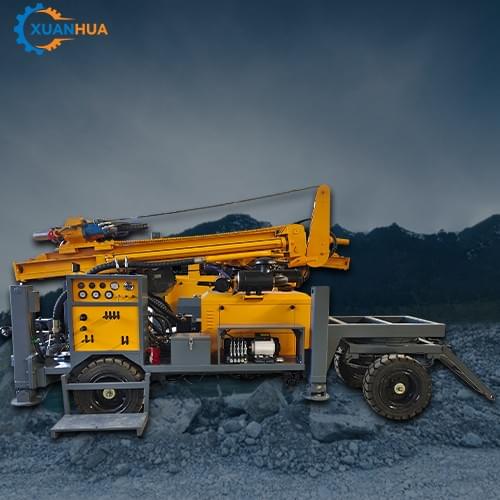

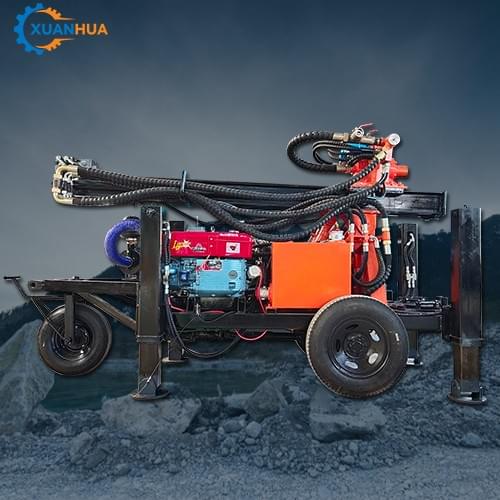

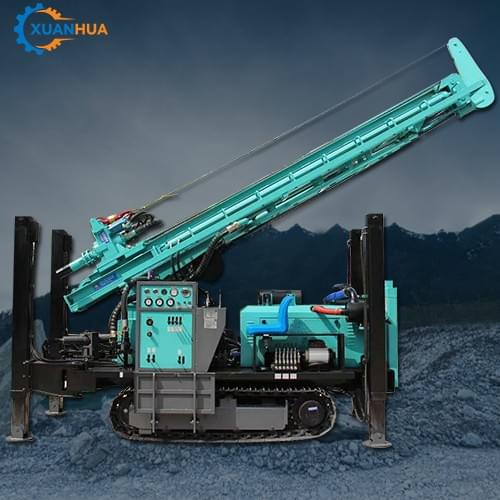

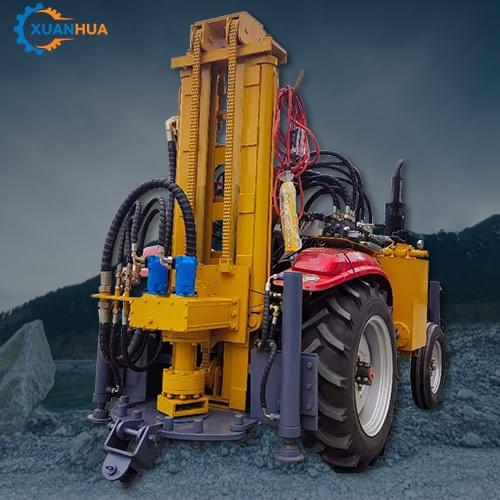

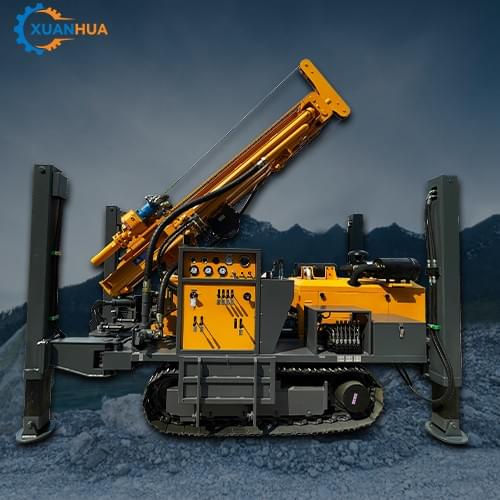

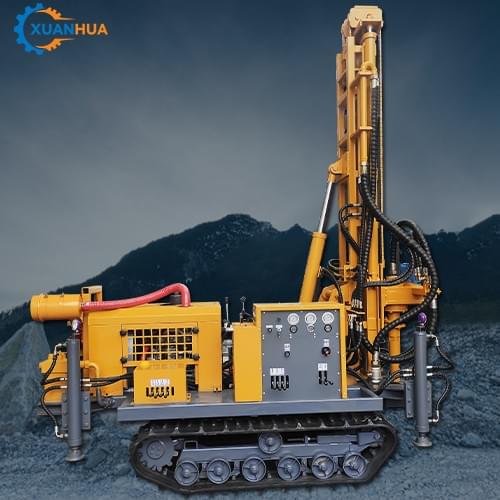

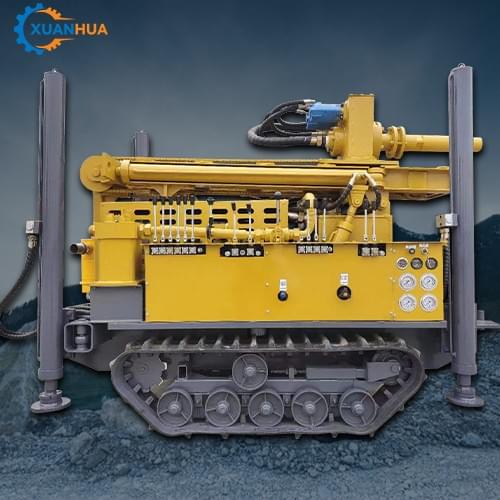

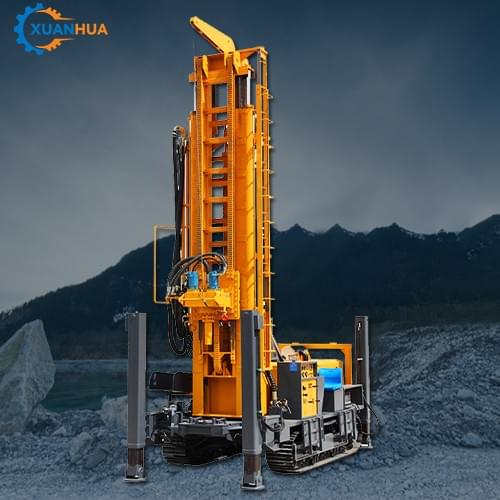

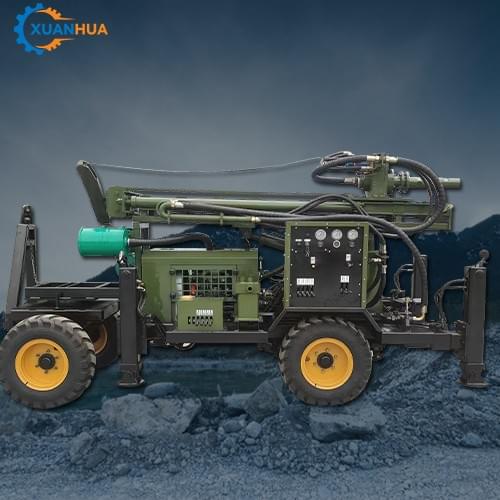

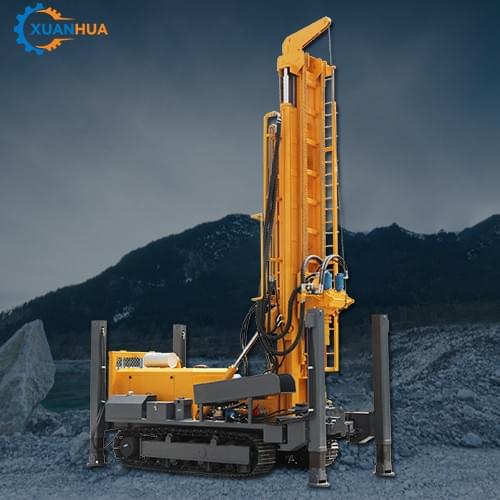

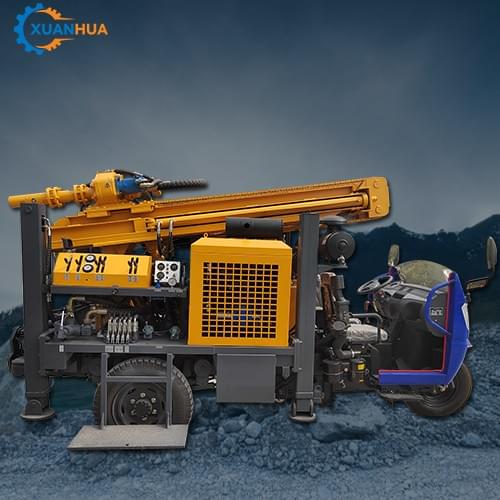

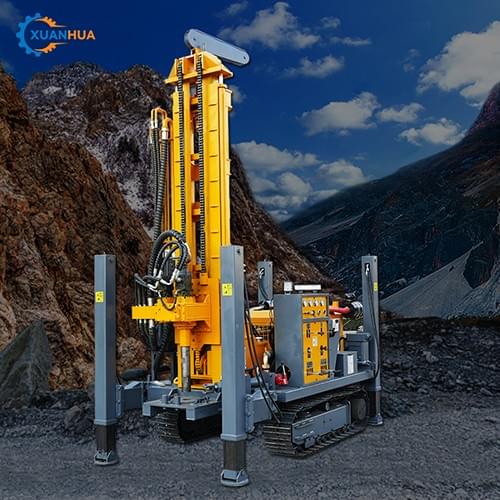

For the air drilling rig, it also called DTH drilling rig or percussion drilling rig, working withair compressor, which good performance in hard rock layer drilling.The model fromYCQ-130T to YcQ-600, it can drill from 50-600 m in depth. Which can finish one 200mwell within one day.
CONTACT US
Get in touch with us. With us, inspire infinite creativity！
选择...
Welcome to contact Alisa!
Whatsapp: +86 13007535833
Wechat: +86 13007535833
Email: sales01@xuanhuadrillingrig.com
ADD: Unit 1, Building 1, West 5th Street, Hanghai East Road, Zhengzhou Area, Henan ChinaYou are welcome to contact at any time.
