Rotary Drilling Rigs
Rotary drilling rigs can be used together with mud pump, mainly suitable for soil layer, sand layer, mud layer, soft rock layer and other parts of rock layer, 2-3 days can drill a well. Belong to economic drilling rig, personal investment, the first choice of investors
Contacts Us
E-mail: sales01@xuanhuadrillingrig.com
Phone: +86 13007535833
WhatsApp: +86 13007535833
WeChat: +86 13007535833
ADD: Unit 1, Building 1, West 5th Street, Hanghai East Road, Zhengzhou Area, Henan China
For the rotary drilling rigs, we have the models can drill from 50-600 meters depth, both have the wheel mounted model, trailer mounted model, crawler mounted model etc, low weight and easy to move around, suitable for farm, household, school and small areas drilling. It not only can used for water well drilling, also can be used for geological core drilling. Our engineer will match the three-wing alloy bits, diamond bits,diamond compact bits or cone bits depends on your local soil layer condition or your demand, in order to make sure it is workable to you. Because it with low cost, many new customers prefer this series drilling rig very much, they can recovery the cost in short time.

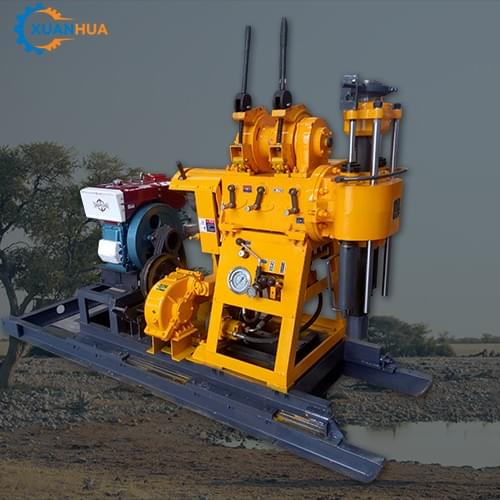

YCS-130
Drilling Depth: 130 m
Open Hole Dia.: 220 mm
End Hole Dia.: 75 mm
Drill Rod Dia.: 42-60 mm
Drill Angle: 90-75 °
Matching Power: 18hp or customize
Weight Without Power: 600-740 kg
Dimension: 2.4*0.8*1.4 mm
Speed: 142/285/570 r/min
Stroke: 450 mm
Max pull force: 2000 kg
Pull speed: 0.41-1.64 m/s
Rope dia.: 9.3 mm
Roll Capacity: 27 m
Drill Mast Rated load： 18 ton
Drill Mast Height: 6.5 m
YCS-180
Drilling Depth: 180 m
Open Hole Dia.: 220 mm
End Hole Dia.: 75 mm
Drill Rod Dia.: 42-60 mm
Drill Angle: 90-75 °
Matching Power: 20hp or customize
Weight Without Power: 620-750 kg
Dimension: 2.4*0.8*1.3 mm
Speed: 130/300/480/790/830/104 r/min
Stroke: 450 mm
Max pull force: 2100 kg
Pull speed: 0.35-2.23 m/s
Rope dia.: 9.3 mm
Roll Capacity: 27 m
Drill Mast Rated load： 18 ton
Drill Mast Height: 6.5 m
YCS-200
Drilling Depth: 200 m
Open Hole Dia.: 325 mm
End Hole Dia.: 75 mm
Drill Rod Dia.: 42-60 mm
Drill Angle: 90-75 °
Matching Power: 28hp or customize
Weight Without Power: 880-970 kg
Dimension: 2.7*0.9*1.5 mm
Speed: 60/128/287/557 r/min
Stroke: 450 mm
Max pull force: 2500 kg
Pull speed: 0.12-0.95 m/s
Rope dia.: 12.5 mm
Roll Capacity: 35 m
Drill Mast Rated load:18 ton
Drill Mast Height: 6.5 m
YCS-200W
Drilling Depth: 200 m
Open Hole Dia.: 325 mm
End Hole Dia.: 75 mm
Drill Rod Dia.: 42-60 mm
Drill Angle: 90-75 °
Matching Power:28hp or customize
Weight Without Power: 880-970 kg
Dimension: 2.7*0.9*1.5 mm
Speed: 60/128/287/557 r/min
Stroke: 450 mm
Max pull force: 2500 kg
Pull speed: 0.12-0.95 m/s
Rope dia.: 12.5 mm
Roll Capacity: 35 m
Drill Mast Rated load： 18 ton
Drill Mast Height: 6.5 m

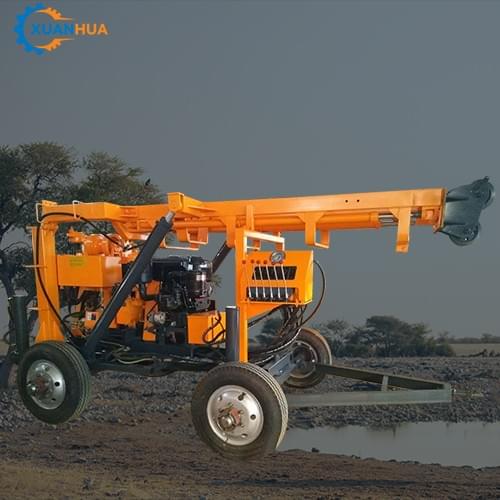

YCS-200T
Drilling Depth: 200 m
Open Hole Diameter: 325 mm
End Hole Diameter: 75 mm
Drill Rod Diameter: 42-60 mm
Drill Hole Angle: 75-90 °
Matching Power: 28hp or customize
Weight Without Power: 880 kg
Dimension: 2.7*0.9*1.5 mm
Spindle Speed: 64/128/287/557 r/min
Spindle Stroke: 450 mm
Max pull force: 2500 kg
Pull speed: 0.12-0.95 m/s
Rope diameter: 12.5 mm
Roll Capacity: 35 m
Drill Mast Rated load:18 ton
Drill Mast Height: 6.5 m

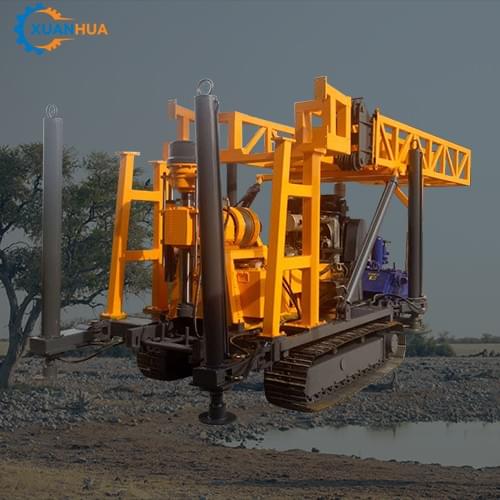

YCS-200C
Drilling Depth: 200 m
Open Hole Dia.: 325 mm
End Hole Dia.: 75 mm
Drill Rod Dia.: 42-60 mm
Drill Angle: 90-75 °
Matching Power: 28hp or customize
Weight Without Power: 3600 kg
Dimension: 3.8*1.95*2.7 m
Speed: 640/128/287/557 r/min
Stroke: 450 mm
Crawler Size: 350mm*90mm*48blocks
Max. Pressure: 1.3 MPa
Moving Speed: 10 km/h
Hydraulic Landing Leg Valid Heigh: 1300 mm
Rated Load: 18 ton
Dispalcement: 160 L/min

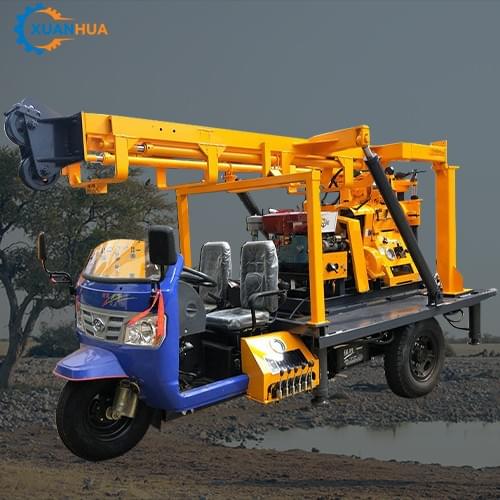

YCS-200S
Drilling Depth: 200 m
Open Hole Dia.: 325 mm
End Hole Dia.: 75 mm
Drill Rod Dia.: 42-60 mm
Drill Angle: 90-75 °
Matching Power: 28hp or customize
Weight Without Power: 3000 kg
Dimension: 4*1.7*2.3 mm
Speed: 60/128/287/557 r/min
Stroke: 450 mm
Motor Tricycle Rated Power: 18.3 kw
Motor Tricycle Rated Speed: 2200 r/min
Dispalcement: 160 L/min
Max. Pressure: 1.3 MPa
Rated load： 18 ton
Height: 6.5 m

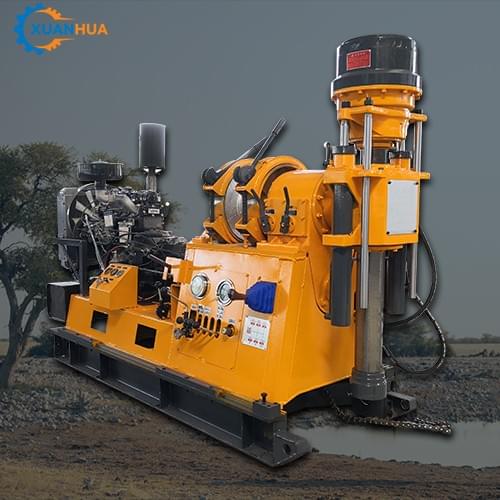

YCS-3
Drilling Depth: 600 m
Driling Diameter: 75-325 mm
Matching Power: YN27/42 kw or customize
Drill Angle: 90-75 °
Weight Without Power: 1800 kg
Dimension: 2.6*0.9*1.75 m
Speed: 32-1057 r/min
Stroke: 600 mm
Max pull force: 3000 kg
Pull speed: 0.3-1.9 m/s
Rope diameter: 12.5 mm
Roll Capacity: 65 m
Drill Mast Rated load： 18 ton
Drill Mast Height: 11 m
YCS-3T
Drilling Depth: 600 m
Driling Diameter: 75-325 mm
Matching Power: YN27/42 kw or customize
Drill Angle: 90-75 °
Weight Without Power: 3600 kg
Dimension: 2.9*2.56*3.3 m
Speed: 32-1057 r/min
Stroke: 600 mm
Max pull force: 3000 kg
Pull speed: 0.3-1.9 m/s
Rope diameter: 12.5 mm
Roll Capacity: 65 m
Drill Mast Rated load:18 ton
Drill Mast Height: 6.5 m

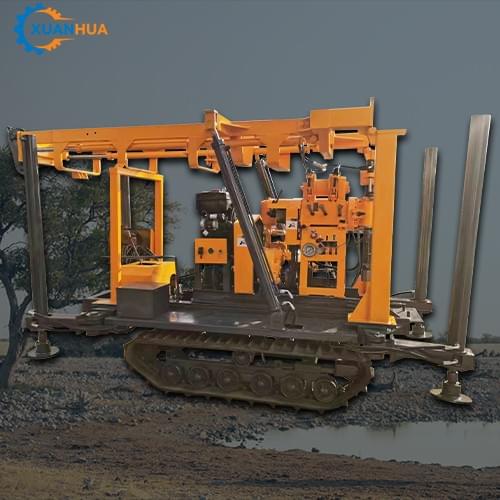

YCS-3C
Drilling Depth: 600 m
Driling Diameter: 75-325 mm
Matching Power: YN33GBZ/65 kw or customize
Drill Angle: 90-75 °
Weight Without Power: 6200 kg
Dimension: 4.5*2*2.7 m
Speed: 32-1057 r/min
Stroke: 600 mm
Max pull force: 4500 kg
Pull speed: 0.3-1.9 m/s
Rope diameter: 12.5 mm
Roll Capacity: 65 m
Drill Mast Rated load:18 ton
Drill Mast Height: 6.5 m

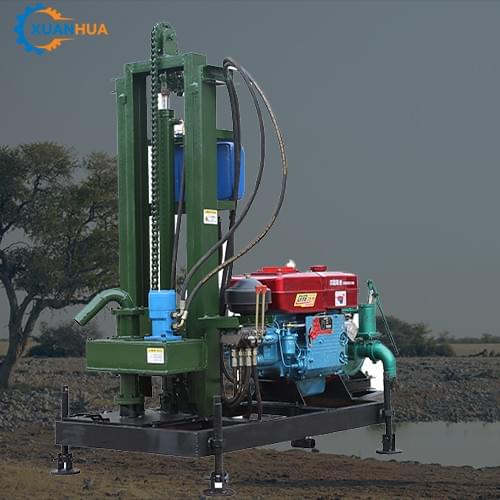

YCS-130W
Power: Diesel Engine
Power: 22hp
Drilling Diameter: 100-300 mm
Drill Rod Diameter: 51 mm
Drilling Depth: max 130 m
Weight: 300 kg
Soil types: Clay layer,sandy layer, and small rocky layer
YCS-150W
注册创意咨询MAIN FEATURES

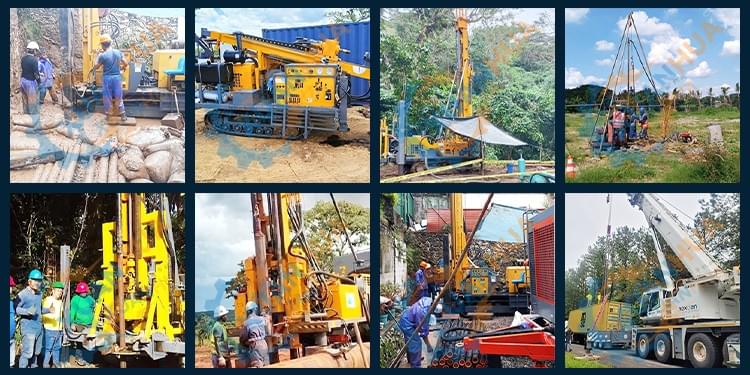

CUSTOMERS CASES
For the rotary drilling rigs, we have the models can drill from 50-600 meters depth, bothhave the wheel mounted model, trailer mounted model, crawler mounted model etclow weight and easy to move around, suitable for farm, household, school and small areas drilling.
