For the Shallow drilling rig, it is our lowest cost drilling rig models, the depth from 20m to 200m,Both can drill the soil, sandy, clay, muddy and some rock layer, mainly for personal using, like drill water well at home, hotel, or drill for the farms, if you have interests, please kindly advise your drilling depth, hole diameter and soil layer condition, we will provide the full quotation to you as soon as possible.

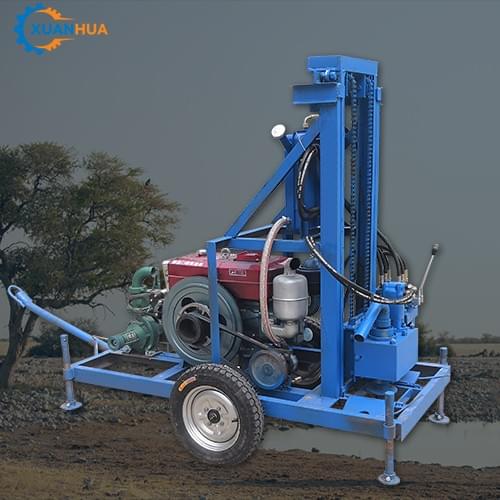

YCS-13W
Power: Diesel Engine
HP: 20
Drilling Diameter: 100-300 mm
Drill Rod Diameter: 51 mm
Drilling Depth: 130 m
Weight: 300 kg
Soil types: Clay layer,sandy layer, and small rocky layer

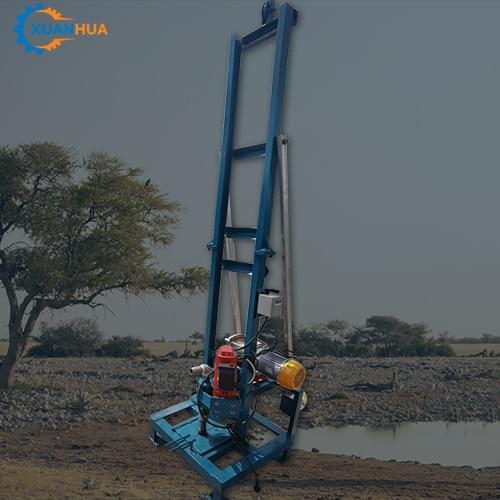

YCS-80
Dimension: 0.65*0.65*2.6 m
Main power: 4 kw
Drill rod length: 1.5 m
Drilling depth: 80-20 m
Matching water pump: 2.2 kw three impeller
Weight: 150 kg

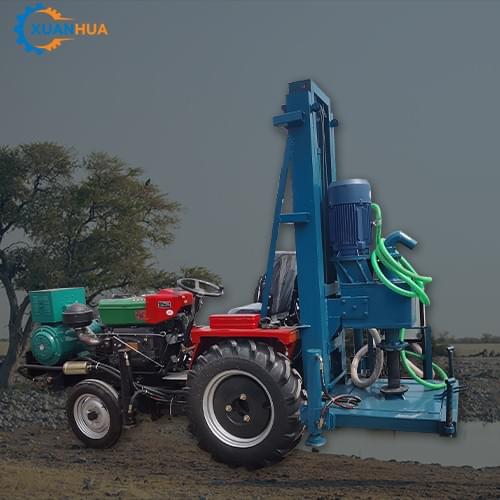

YCS-80T
Tractor power: 36 HP
Walking size: 4.0*1.3*2.6 m
Main power: 11 kw
Drill rod diameter: 60/73/89
Oil pump motor: 4 kw
Rotating speed: 60/90 r/min
Drilling diameter: 200-750 mm
Generator: 30 kw
Drilling depth: 80-20 m
Voltage: 380 v
Weight: 2.7 T
Matching water pump: 5.5/7.5 kw

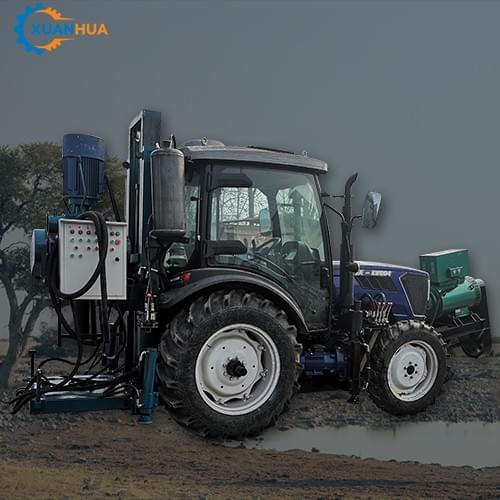

YCS-130D
Transmission: five-speed transmission
Tractor power: more than 90 horsepower
Speed: 26/120 r/min
Large pump motor: 15 kw
Drilling diameter: 300-1000 mm
Vacuum pump: 4 kw
Drilling depth: 130-20 m
Generator: 50 kw
Voltage: 380 v
Matching water pump is circulating: 15 kw

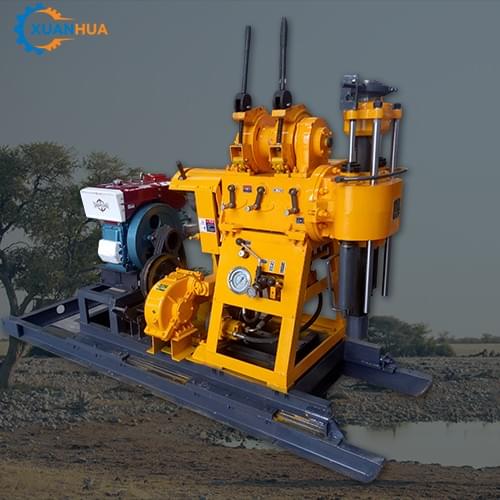

YCS-130
Drilling Depth: 130 m
Open Hole Dia.: 220 mm
End Hole Dia.: 75 mm
Drill Rod Dia.: 42-60 mm
Drill Angle: 90-75 °
Matching Power: 18hp or customize
Weight Without Power: 600-740 kg
Dimension: 2.4*0.8*1.4 mm
Speed: 142/285/570 r/min
Stroke: 450 mm
Max pull force: 2000 kg
Pull speed: 0.41-1.64 m/s
Rope dia.: 9.3 mm
Roll Capacity: 27 m
Drill Mast Rated load： 18 ton
Drill Mast Height: 6.5 m
YCS-180
Drilling Depth: 180 m
Open Hole Dia.: 220 mm
End Hole Dia.: 75 mm
Drill Rod Dia.: 42-60 mm
Drill Angle: 90-75 °
Matching Power: 20hp or customize
Weight Without Power: 620-750 kg
Dimension: 2.4*0.8*1.3 mm
Speed: 130/300/480/790/830/104 r/min
Stroke: 450 mm
Max pull force: 2100 kg
Pull speed: 0.35-2.23 m/s
Rope dia.: 9.3 mm
Roll Capacity: 27 m
Drill Mast Rated load： 18 ton
Drill Mast Height: 6.5 m
YCS-200
Drilling Depth: 200 m
Open Hole Dia.: 325 mm
End Hole Dia.: 75 mm
Drill Rod Dia.: 42-60 mm
Drill Angle: 90-75 °
Matching Power: 28hp or customize
Weight Without Power: 880-970 kg
Dimension: 2.7*0.9*1.5 mm
Speed: 60/128/287/557 r/min
Stroke: 450 mm
Max pull force: 2500 kg
Pull speed: 0.12-0.95 m/s
Rope dia.: 12.5 mm
Roll Capacity: 35 m
Drill Mast Rated load:18 ton
Drill Mast Height: 6.5 m
