- Mud&Air Drilling Rig
Rotary mud and DTH air drilling systems are the most common well drilling method in world. While mud rotary is widely used for soft and medium formation soil, which can avoid the collapse effectively; DTH system is usually employed for faster drilling on medium and hard soil including rocky formations.
Contacts Us
E-mail: sales01@xuanhuadrillingrig.com
Phone: +86 13007535833
WhatsApp: +86 13007535833
WeChat: +86 13007535833
ADD: Unit 1, Building 1, West 5th Street, Hanghai East Road, Zhengzhou Area, Henan China

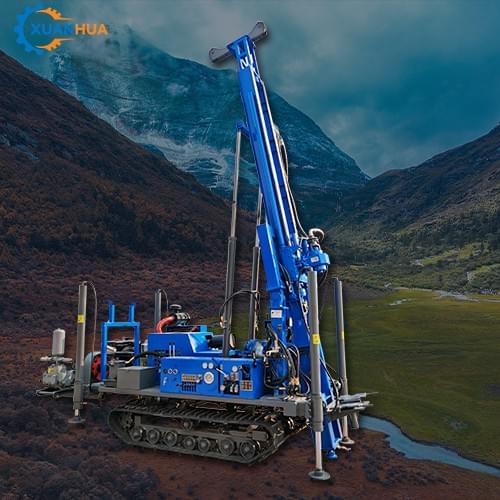

YCD series drilling rig is a water well drilling rig that mix mud drilling rig and air drilling rig in one equipment(National invention patent:ZL201510479602.4). It adopts AMT manual automatic transmission, 10 grade forward gears, and 2 grade reverse gears. Positive and negative switching is sensitive and convenient. Compared with the hydraulic transmission, and its transmission efficiency can be doubled, and the power consumption is reduced by 35%, which make the machine more efficiency and energy-saving. Belong to the most cost-effective drilling rig, according to the customer's budget there are different configuration optional.
YCD-5
Drilling Depth: 500 m
Wireline Coring: 800 m
Drilling Diameter: 75-350 mm
Lifting Capacity: 24T
Thrusting Capacity: 18T
Rotary Speed: AMT/43-1080 r/min
Max. Torque: 12000 N.m
Rated Power/Speed: 92kw/2400rpm
Drill Pipe Dia. : Ø 76/Ø 89/Ø 102 mm NQ/HQ/PQ
Drill Pipe Length: 3000 mm
Air Consumption: 16-35 m³/min
Air Pressure: 10.5-24.6 bar
Walking Speed: 0-2 km/h
Dimension: 6300*2000*2650mm
Weight:11500kg
YCD-5X
Drilling Depth: 500 m
Wireline Coring: 800 m
Drilling Diameter: 75-350 mm
Drilling Angle：75-90°
Lifting Capacity: 24T
Thrusting Capacity: 18T
Rotary Speed: AMT/43-1080 r/min
Max. Torque: 12000 N.m
Rated Power/Speed: 92kw/2400rpm
Drill Pipe Dia. : Ø 76/Ø 89/Ø 102 mm NQ/HQ/PQ
Drill Pipe Length: 3000 mm
Air Consumption: 16-35 m³/min
Air Pressure: 10.5-24.6 bar
Walking Speed: 0-2 km/h
Dimension: 6300*2000*2650mm
Weight:12000kg
YCD-280
Drilling Depth: 280 m
NQ Wireline Coring: 350 m
Driling Diameter:75-220 mm
Lifting Capacity: 10tons
Thrusting capacity: 5tons
Rated power:42kw/2400rpm
Max. Torque: 9800 N.m
Drill Pipe Dia. : Ø 76/Ø 89 mm NQ/HQ/PQ
Drill Pipe Length: 2m
Air Consumption: 16-30 m³/min
Air Pressure: 10.5-24.6 bar
Dimension: 4600*1900*2540mm
Weight:3800kg
YCD-280T
Drilling Depth: 280 m
NQ Wireline Coring: 350 m
Driling Diameter: 42-350 mm
Lifting Capacity: 10tons
Thrusting capacity: 5tons
Rated power:42kw/2400rpm
Max. Torque: 9800 N.m
Drill Pipe Dia. : Ø 76/Ø 89 mm NQ/HQ/PQ
Drill Pipe Length: 3000 mm
Air Consumption: 16-30 m³/min
Air Pressure: 10.5-24.6 bar
Dimension: 4600*1900*2540mm
Weight:3600kg
YCD-280X
Drilling Depth: 280 m
NQ Wireline Coring: 350 m
Driling Diameter:75-220 mm
Drilling Angle：75-90°
Lifting Capacity: 10tons
Thrusting capacity: 5tons
Rated power:42kw/2400rpm
Max. Torque: 9800 N.m
Drill Pipe Dia. : Ø 76/Ø 89 mm NQ/HQ/PQ
Drill Pipe Length: 2m
Air Consumption: 16-30 m³/min
Air Pressure: 10.5-24.6 bar
Dimension:5600*1900*2600mm
Weight:4800kg
YCD-350
Drilling Depth: 350 m
NQ Wireline Coring: 600 m
Driling Diameter: 75-220 mm
Lifting Capacity: 12T
Thrusting Capacity: 8.5T
Rotary Speed: AMT/50-1020 r/min
Max. Torque: 10500 N.m
Rated Power/Speed: 58kw/2400rpm
Hydraulic Winch: 1.5 ton
Mechanical Winch: 4.5 ton
Drill Pipe Dia. : Ø 76/Ø 89/Ø 102 mm NQ/HQ/PQ
Drill Pipe Length: 3000 mm
Air Consumption: 16-30 m³/min
Air Pressure: 10.5-24.6 bar
Walking Speed: 0-2 km/h
Dimension: 6300*2000*2600mm
Weight:6500kg
YCD-350T
Drilling Depth: 350 m
NQ Wireline Coring: 600 m
Driling Diameter: 75-220 mm
Lifting Capacity: 12T
Thrusting Capacity: 8.5T
Rotary Speed: AMT/50-1020 r/min
Max. Torque: 10500 N.m
Rated Power/Speed: 58kw/2400rpm
Hydraulic Winch: 1.5 ton
Mechanical Winch: 4.5 ton
Drill Pipe Dia. : Ø 76/Ø 89/Ø 102 mm NQ/HQ/PQ
Drill Pipe Length: 3000 mm
Air Consumption: 16-30 m³/min
Air Pressure: 10.5-24.6 bar
Walking Speed: 0-2 km/h
Dimension: 6300*2000*2600mm
Weight:6200kg
YCD-350X
Drilling Depth: 350 m
NQ Wireline Coring: 600 m
Driling Diameter: 75-220 mm
Drilling Angle：75-90°
Lifting Capacity: 12T
Thrusting Capacity: 8.5T
Rotary Speed: AMT/50-1020 r/min
Max. Torque: 10500 N.m
Rated Power/Speed: 65kw/2400rpm
Hydraulic Winch: 1.5 ton
Mechanical Winch: 4.5 ton
Drill Pipe Dia. : Ø 76/Ø 89/Ø 102 mm NQ/HQ/PQ
Drill Pipe Length: 3000 mm
Air Consumption: 16-30 m³/min
Air Pressure: 10.5-24.6 bar
Walking Speed: 0-2 km/h
Dimension: 6300*2000*2600mm
Weight:7000kg

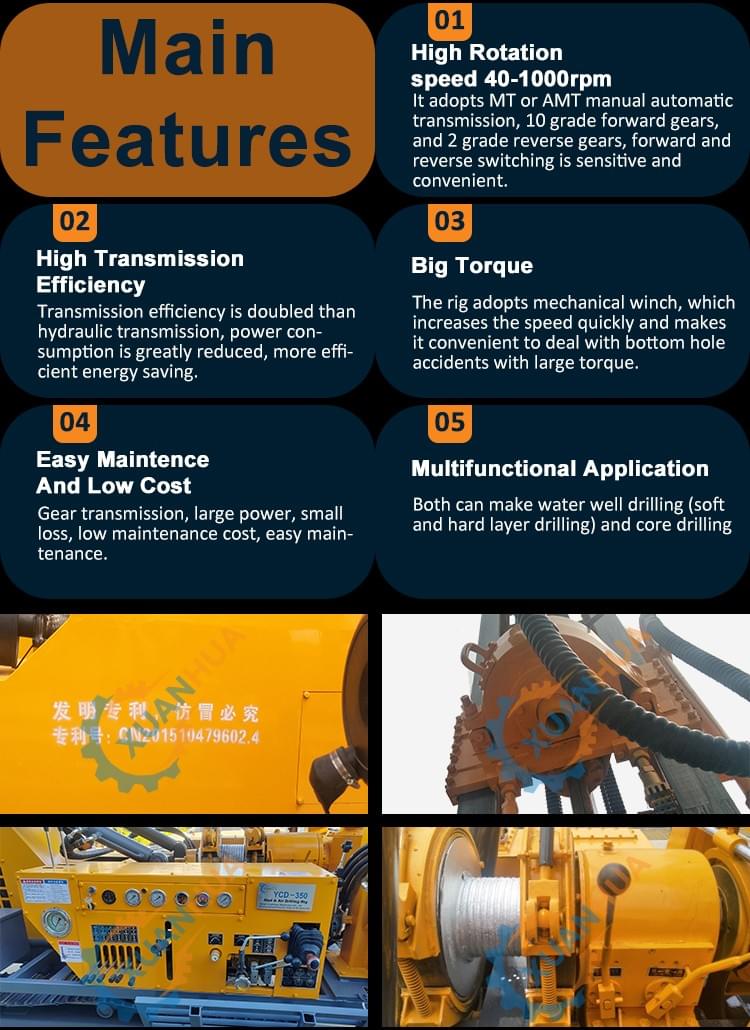

MAIN FEATURES
CUSTOMERS CASES
Rotary mud and DTH air drilling systems are the most common well drilling method inworld. While mud rotary is widely used for soft and medium formation soil, which canavoid the collapse effectively; DTH system is usually employed for faster drilling onmedium and hard soil including rocky formations.
