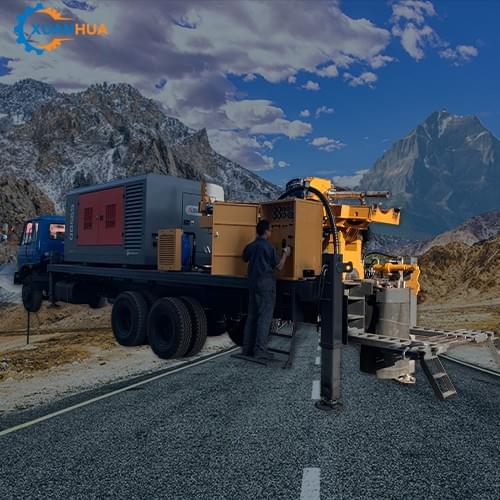

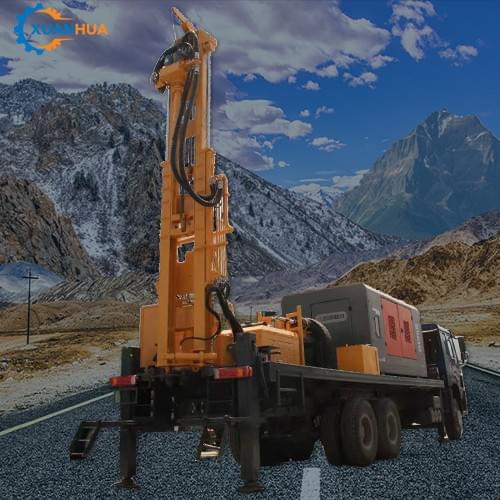

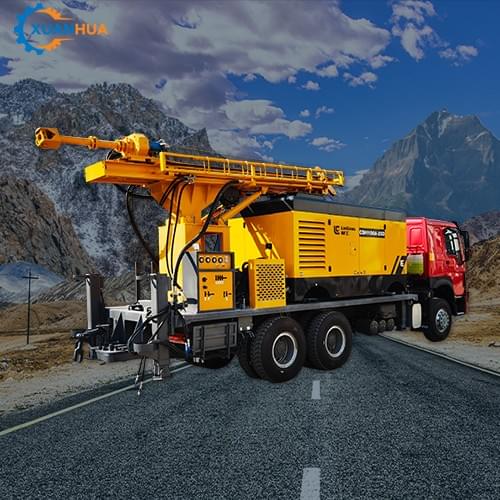

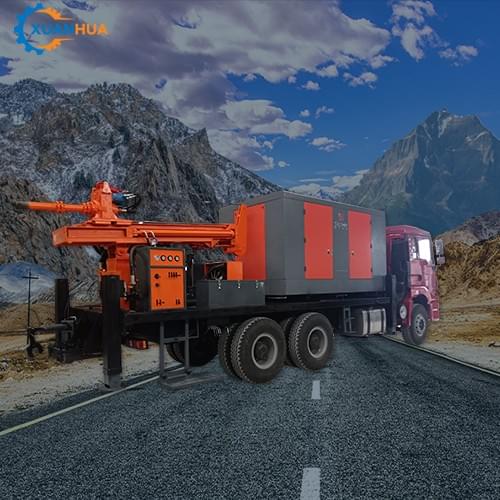

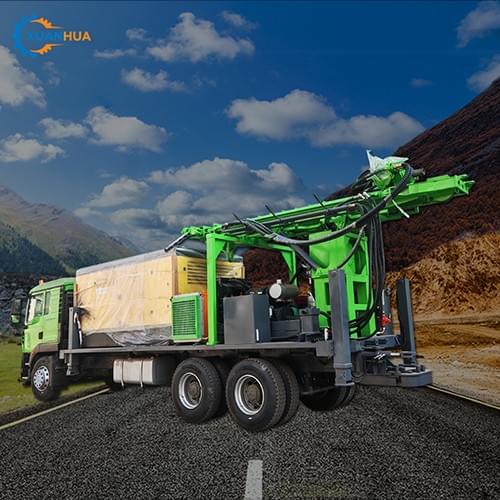

Truck Mounted Drilling Rig
Truck mounted drilling rig have Independent Engine for truck and rigs.Full hydraulic top-drive, which effectively reduces the wearing of the drill stem thread, and increases service life of the drill stem. A spindle with strong slag discharge capacity through large drift diameter, which makes it especially adapt the reverse circulation construction.We ensure customer can finish a 50-200meters borehole in a day, and a 300meters borehole in 2days.Easy maintenance, only need to change the hydraulic filter every 300 hours and add butter regularly。
Contacts Us
E-mail: sales01@xuanhuadrillingrig.com
Phone: +86 13007535833
WhatsApp: +86 13007535833
WeChat: +86 13007535833
ADD: Unit 1, Building 1, West 5th Street, Hanghai East Road, Zhengzhou Area, Henan China
About the portable truck mounted drilling rig, we mainly have 3 series, it meet the requirements of the customers from different countries:
1.Drilling rig working with air compressor;2.Drilling rig working with mud pump;3. Drilling rig work with air&mud
Our engineer team have more than 15 years’ working experience in Africa market, you will get the most correct solution from us to start your promising business. Because the full set cost is large accordingly compare with another models, you can feel free to share your rough budget with us, so that we can check which configuration is suitable to you.
YCS-200K
Drilling Depth: 30-200 m
Open Hole Dia.: 300-75 mm
Drill Angle: 90-75 °
Speed: 64-557 r/min
Stroke: 450 mm
Max Pull Force: 1600 kg
Roll Capacity: 35 m
Rull Speed: 0.12-0.95 m/s
Rope dia.: 12.5 mm
Height: 6500 mm
Weight Without Power: 970 kg
Diesel Engine: 14.7 kw/2200 rpm
Mud Pump: BW-160
Vehicle Chassic Model: Optional
Vehicle Chassic Drive Type: 4*2
Diesel Engine Model: Optional
YCT-5
Drilling Depth:
PQ -800 meters
146 mm -600 meters
176 mm -400 meters
220 mm-200 meters
350 mm-50 meters
Open Hole Dia.: 300-75 mm
Drilling Diameter: 75-325 mm
Lifting Capacity: 24 T
Thrusting Capacity: 18 T
Rotary Speed: AMT/43-1080 r/min
Max. Torque: 14000 N.m
Rated Power/speed: 92 kw/2400 rpm
Drill Pipe Dia.: 76/89/102 mm
Drill Pipe Length: 3000 mm
Air Consumption: 16-35 m³/min
Air Pressure: 10.5-24.6 bar
YCT-200-1
Drilling Depth: 200 m
Drilling Diameter: 105-305 mm
Air Pressure: 1.2-3.5 bar
Air Consumption: 16-55 m³/min
Rod Length: 3 m
Rod Dia.: 76/89 mm
Main Shaft Ressure: 4 T
Lifting Force: 16 T
Fast Lifting Speed: 20 m/min
Fast Forwarding Speed: 40 m/min
Max Rotary Torque: 4900/2450 Nm
Max Rotary Speed: 80/170 r/min
Small secondary Winch Lifting Force: 1.5 T
Jacks Stroke: 1.35 m
Drilling Efficiency: 10-35 m/h
Moving speed: 2.5 km/h
Uphill Angle: 21°
YCT-200-2
Drilling Depth: 200 m
Drilling Diameter: 105-305 mm
Air Pressure: 1.2-3.5 bar
Air Consumption: 16-55 m³/min
Rod Length: 3 m
Rod Dia.: 76/89 mm
Main Shaft Ressure: 4 T
Lifting Force: 16 T
Fast Lifting Speed: 20 m/min
Fast Forwarding Speed: 40 m/min
Max Rotary Torque: 4900/2450 Nm
Max Rotary Speed: 80/170 r/min
Small secondary Winch Lifting Force: 1.5 T
Jacks Stroke: 1.35 m
Drilling Efficiency: 10-35 m/h
Moving speed: 2.5 km/h
Uphill Angle: 21°
YCT-200-3
Drilling Depth: 200 m
Drilling Diameter: 105-305 mm
Air Pressure: 1.2-3.5 bar
Air Consumption: 16-55 m³/min
Rod Length: 3 m
Rod Dia.: 76/89 mm
Main Shaft Ressure: 4 T
Lifting Force: 16 T
Fast Lifting Speed: 20 m/min
Fast Forwarding Speed: 40 m/min
Max Rotary Torque: 4900/2450 Nm
Max Rotary Speed: 80/170 r/min
Small secondary Winch Lifting Force: 1.5 T
Jacks Stroke: 1.35 m
Drilling Efficiency: 10-35 m/h
Moving speed: 2.5 km/h
Uphill Angle: 21°
YCT-200-4
Drilling Depth: 200 m
Drilling Diameter: 105-305 mm
Air Pressure: 1.2-3.5 bar
Air Consumption: 16-55 m³/min
Rod Length: 3 m
Rod Dia.: 76/89 mm
Main Shaft Ressure: 4 T
Lifting Force: 16 T
Fast Lifting Speed: 20 m/min
Fast Forwarding Speed: 40 m/min
Max Rotary Torque: 4900/2450 Nm
Max Rotary Speed: 80/170 r/min
Small secondary Winch Lifting Force: 1.5 T
Jacks Stroke: 1.35 m
Drilling Efficiency: 10-35 m/h
Moving speed: 2.5 km/h
Uphill Angle: 21°
YCT-200-TD
Drilling Depth: 200 m
Drilling Diameter: 105-305 mm
Air Pressure: 1.2-3.5 bar
Air Consumption: 16-55 m³/min
Rod Length: 3 m
Rod Dia.: 76/89 mm
Main Shaft Ressure: 4 T
Lifting Force: 16 T
Fast Lifting Speed: 20 m/min
Fast Forwarding Speed: 40 m/min
Max Rotary Torque: 4900/2450 Nm
Max Rotary Speed: 80/170 r/min
Small secondary Winch Lifting Force: 1.5 T
Jacks Stroke: 1.35 m
Drilling Efficiency: 10-35 m/h
Moving speed: 2.5 km/h
Uphill Angle: 21°
Weight of the Rig: 8 T
Dimension: 4*1.35*2.15 m
YCT-300-1
Drilling Depth: 300 m
Drilling Diameter: 105-305 mm
Air Pressure: 1.2-3.5 bar
Air Consumption: 16-55 m³/min
Rod Length: 3 m
Rod Dia.: 89 mm
Main Shaft Ressure: 5 T
Lifting Force: 16 T
Fast Lifting Speed: 14 m/min
Fast Forwarding Speed: 21 m/min
Max Rotary Torque: 6100/3050 Nm
Max Rotary Speed: 55/10 r/min
Small secondary Winch Lifting Force: 1.5 T
Jacks Stroke: 1.6 m
Drilling Efficiency: 10-35 m/h
Moving speed: 2.5 km/h
Uphill Angle: 21°
YCT-300-2
Drilling Depth: 300 m
Drilling Diameter: 105-305 mm
Air Pressure: 1.2-3.5 bar
Air Consumption: 16-55 m³/min
Rod Length: 3 m
Rod Dia.: 89 mm
Main Shaft Ressure: 5 T
Lifting Force: 16 T
Fast Lifting Speed: 14 m/min
Fast Forwarding Speed: 21 m/min
Max Rotary Torque: 6100/3050 Nm
Max Rotary Speed: 55/10 r/min
Small secondary Winch Lifting Force: 1.5 T
Jacks Stroke: 1.6 m
Drilling Efficiency: 10-35 m/h
Moving speed: 2.5 km/h
Uphill Angle: 21°
YCT-350
Drilling Depth: 350 m
Drilling Diameter: 105-305 mm
Air Pressure: 1.2-3.5 bar
Air Consumption: 16-55 m³/min
Rod Length: 6 m
Rod Dia.: 89 mm
Main Shaft Ressure: 4 T
Lifting Force: 18 T
Fast Lifting Speed: 20 m/min
Fast Forwarding Speed: 40 m/min
Max Rotary Torque: 7700/3850 Nm
Max Rotary Speed: 65/130 r/min
Small secondary Winch Lifting Force: 1.5 T
Jacks Stroke: 1.35 m
Drilling Efficiency: 10-35 m/h
Moving speed: 2.5 km/h
Uphill Angle: 21°
YCT-400
Drilling Depth: 400 m
Drilling Diameter: 105-305 mm
Air Pressure: 1.2-3.5 bar
Air Consumption: 16-55 m³/min
Rod Length: 3 m
Rod Dia.: 89/102 mm
Main Shaft Ressure: 6 T
Lifting Force: 22 T
Fast Lifting Speed: 21 m/min
Fast Forwarding Speed: 34 m/min
Max Rotary Torque: 7700/3850 Nm
Max Rotary Speed: 80/160 r/min
Small secondary Winch Lifting Force: 1.5 T
Jacks Stroke: 1.6 m
Drilling Efficiency: 10-35 m/h
Moving speed: 3 km/h
Uphill Angle: 21°

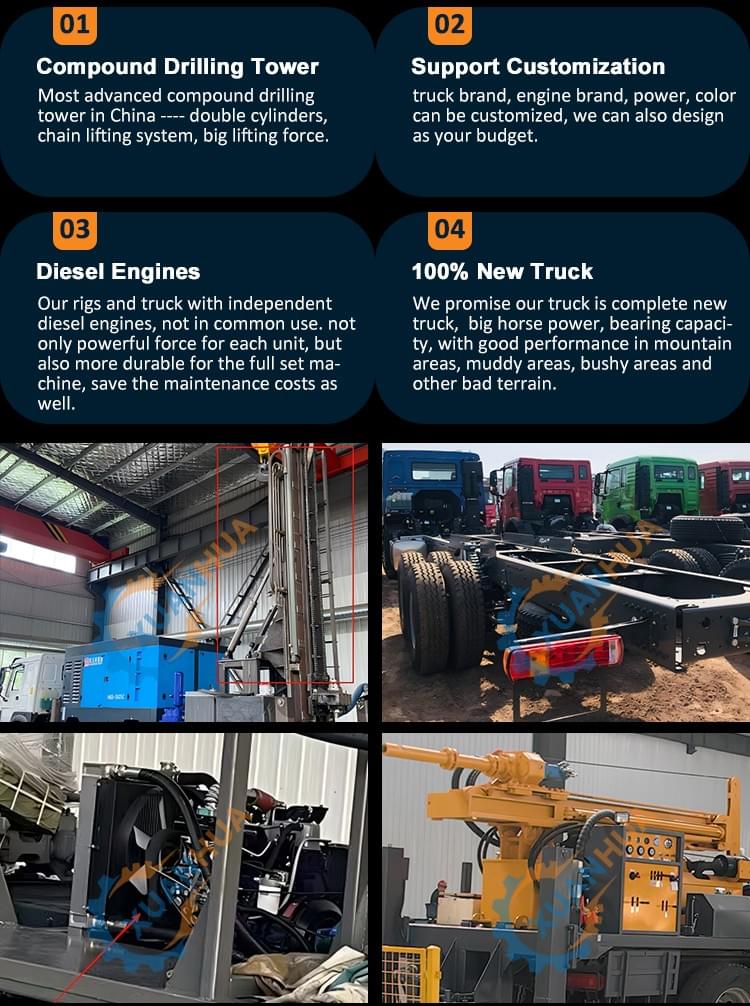

Advantage of Our Truck Mounted Drilling Rig
I. Drilling rig
1. Main parts of the drilling rig are imported brands, like German valve core, American Permco oil pump, America Eston rotary motor etc.
2. It is multi-functional drilling rig, combine the rotaty and DHT drilling, while mud rotary is widely used for soft and medium formation soil, which can avoid the collapse effectively;
DTH system is usually employed for faster drilling on medium and hard soil including rocky formations.
3. Full hydraulic top-drive, which effectively reduces the wearing of the drill stem thread, and increases service life of the drill stem.
4. Independent Engines for truck and rigs, not share one engine, which can greatly reduce the wearing of the reducer, also save the maintenance cost of truck.
5. The value of second-hand machine is higher.
II. We mainly adopts SINOTRUK HOWO chassis
1. We promise our HOWO truck is original right-drive truck, and customized as order.
2. The HOWO truck has after-sales station in Africa, which is more convenient for repair and maintence.
3. Our company has cooperated with the suppliers of HOWO truck for nearly several decades, so with very competitive price.
4. For the bearing capacity, horse power and size, all matched well with our drilling rig, which make sure it is powerful to drive in different terrain.
